Description

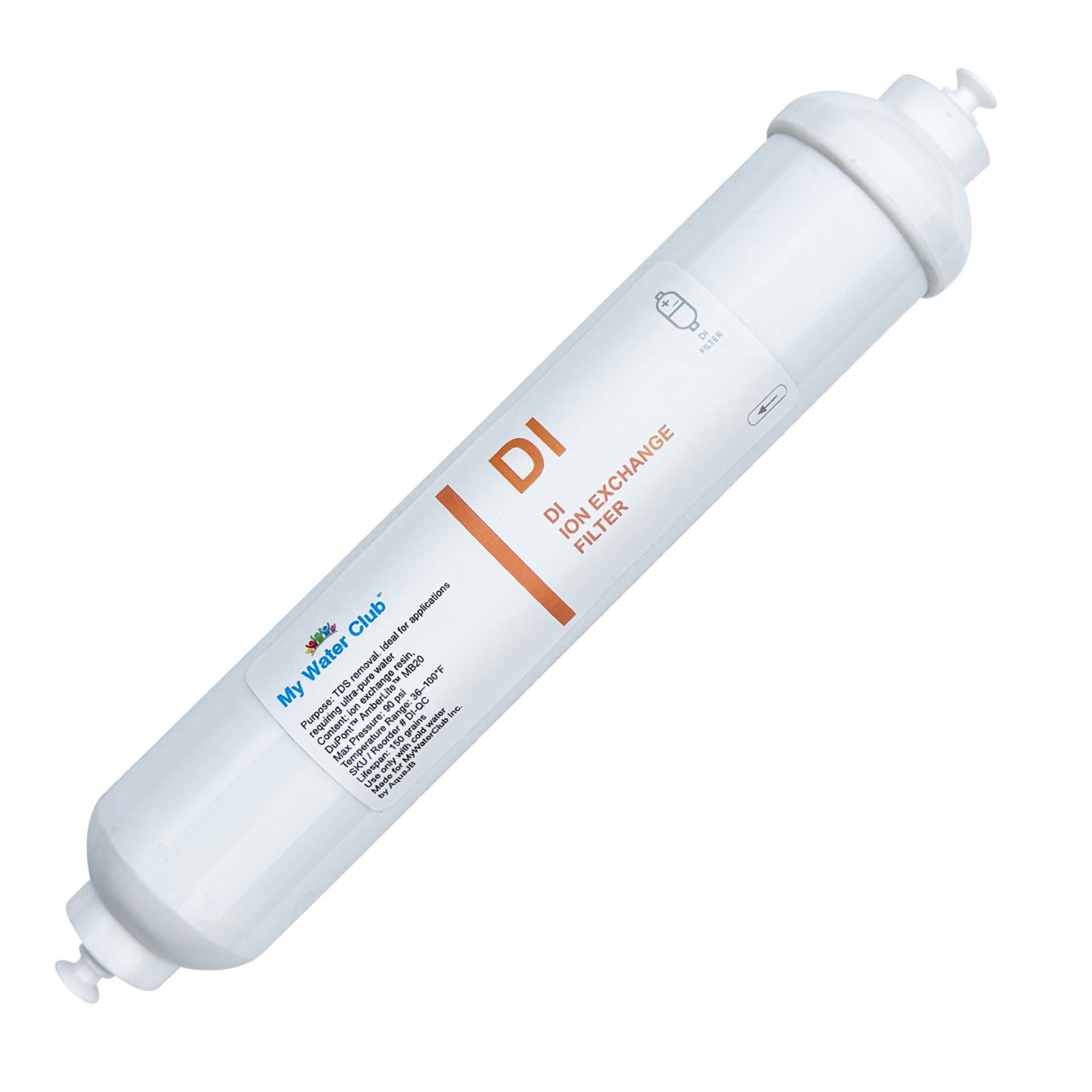

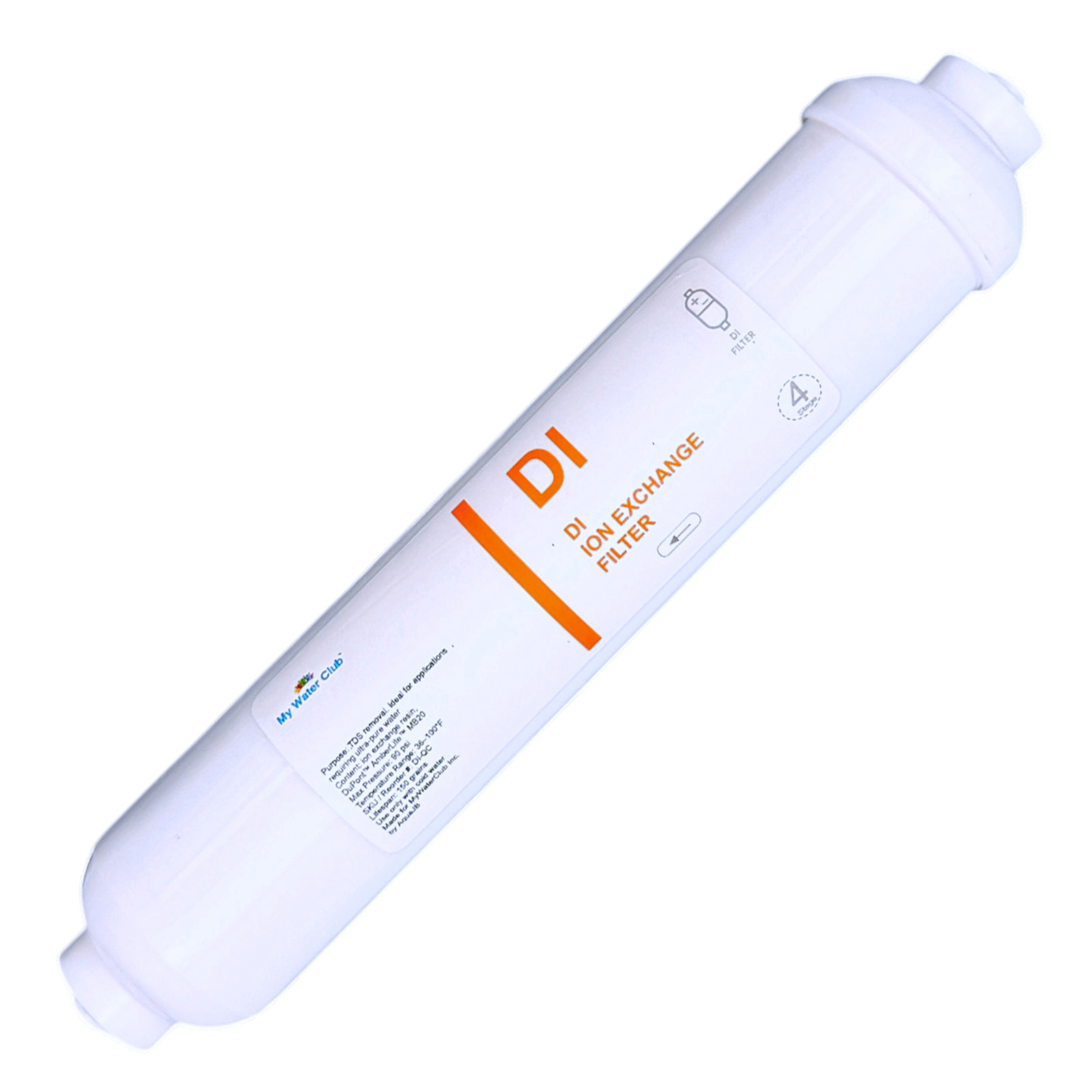

DI-QC Inline Deionization Ion Exchange (DI) Filter – Ultra-Pure Water Quality

Purpose:
Engineered for TDS removal and designed to deliver ultra-pure, zero-TDS water, this DI inline filter is perfect for applications demanding the highest water purity.

Ideal For

• Aquariums (Fresh & Saltwater): Ensures a stable, contaminant-free environment for sensitive aquatic life.

• Reverse Osmosis Systems: Commonly installed after the RO membrane and before the carbon polishing stage to remove the final traces of dissolved solids.

• Brewing, Hydroponics & Specialty Use: Excellent for breweries, labs, and any application that requires ultra-pure water.

Connection Type

• Standard Inlet/Outlet: 1/4″ Quick-Connect ports

• Optional fittings available:

  • 90° Elbow Stem Fitting: 1/4″ stem × 1/4″ QC (for tight or angled installations)

  • Step-Up Fitting: 1/4″ stem × 3/8″ OD tubing

• Free Fittings: We can ship any 2 fittings free of charge with your filter order.

  • If you need fittings, please mention it in the Customer Notes at checkout.

Product Features

• Premium Resin: Packed with DuPont AmberLite MB20 mixed-bed ion exchange resin for superior TDS reduction and consistent ultra-pure output.

• Max Pressure: 90 PSI

• Temperature Range: 36–100°F

• Lifespan: 150 grains (lifespan depends on feed water quality and TDS level)

• Cold Water Use Only

• Easy Installation: Quick-Connect design for fast setup with standard tubing.

Specifications

• SKU / Reorder: DI-QC

• Manufactured For: MyAquaFilter by AquaJB

• Function: Final-stage polishing filter to achieve 0 TDS

• Media: Ion exchange mixed-bed resin

🔧Installation Tips

Tubing Size

• Most RO systems use 1/4″ OD tubing (standard RO size).
• Some countertop RO systems and specialty setups use 3/8″ OD tubing.
• Tubing size refers to the outside diameter (OD) of the tube.

When Do You Need Elbow Adapters?

• Select 3/8″ OD Tubing if your system uses larger tubing.
• We include 2 elbow adapters to connect the inline filter to 3/8″ OD tubing.

✔ No tools required
✔ Push-to-connect installation

When Do You Need a T-Fitting?

A T-fitting (1/4″ stem x 1/4″ OD Tubing x 1/4″ OD Tubing) is helpful if you are:

• Adding the inline filter to an existing 1/4″ RO line
• Want an easier install with a clean branch connection
• Installing between tubing lines without reworking your layout

✔ Optional accessory
✔ Makes installation easier for some setups

Not Sure Which Option to Choose?

• If unsure, select 3/8″ OD Tubing. The filter comes with 1/4″ connections, and we include two elbow fittings for 3/8″ OD tubing in the package.
• Message us before ordering—we’re happy to help you pick the right fittings.

▶️ Video Installation Guidance

Because RO systems and plumbing layouts can vary, there are multiple valid ways to install an inline filter.

If you are unsure about your setup, we recommend:

• Searching YouTube for “inline RO filter installation”
• Watching a video that best matches your system type
  (under-sink RO, countertop RO, post-filter installation, etc.)

Visual step-by-step videos can be very helpful and often make installation easier and faster.
