Description

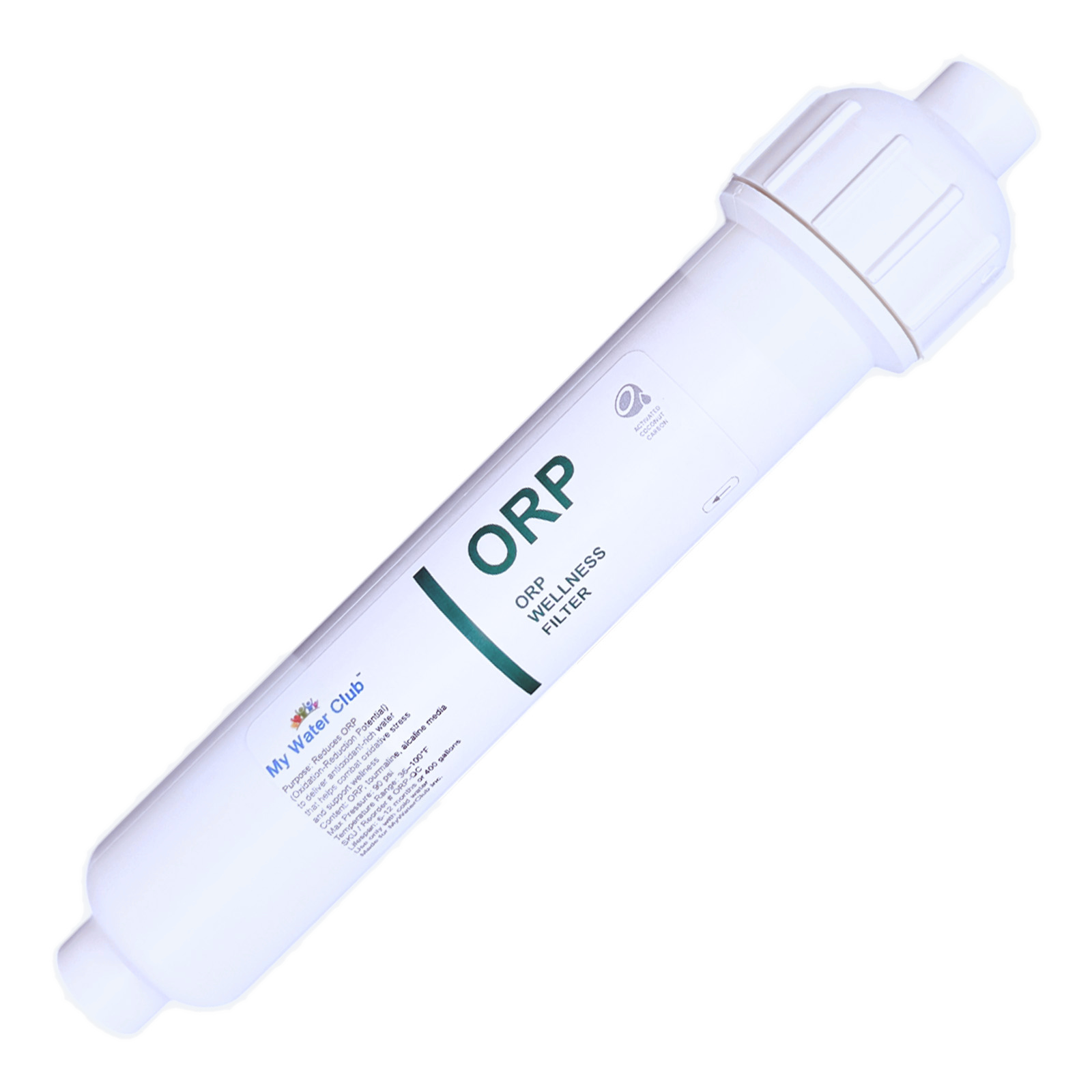

ORP Wellness Inline Filter

10″ × 2″ Standard Size | 1/4″ & 3/8″ OD Tubing Connection

The ORP Wellness Inline Filter is designed as a post-filtration conditioning stage
to enhance the overall quality, taste, and feel of drinking water. This multi-media inline filter combines
alkaline media, ORP media, and tourmaline to support mineral balance and wellness-focused water conditioning.

Ideal for use after reverse osmosis (RO) systems or carbon filtration, this filter does not replace primary
filtration stages, but instead serves as a final polishing and wellness enhancement step.

Media Composition

• 50% Alkaline Media – helps support mineral balance and mild pH buffering
• 25% ORP Media – designed to support antioxidant-style water conditioning
• 25% Tourmaline Media – contributes far-infrared (FIR) properties and wellness conditioning

Key Benefits

• Designed to support wellness-focused water conditioning
• Helps improve taste and mouthfeel of purified water
• Mild alkaline buffering effect (results vary by water source)
• No electricity, no chemicals, no moving parts
• Inline design allows easy installation and replacement

Applications

• Final stage for countertop or under-sink RO systems
• Post-carbon polishing stage
• Drinking water systems where wellness and mineral enhancement are desired

Specifications

• Filter Size: 10″ × 2″ (Standard Inline Size)
• Tubing Compatibility: 1/4″ & 3/8″ OD tubing
• Connection Type: Quick-connect (push-fit)
• Recommended Position: Post-RO or post-carbon
• Operating Temperature: 36°F – 100°F (2°C – 38°C)
• Operating Pressure: Up to 100 PSI

Important Notes

• ORP and pH results may vary depending on source water chemistry, flow rate, and contact time.
• This filter is intended for water conditioning and wellness enhancement, not as a primary contaminant removal filter.

🔧Installation Tips

Tubing Size

• Most RO systems use 1/4″ OD tubing (standard RO size).
• Some countertop RO systems and specialty setups use 3/8″ OD tubing.
• Tubing size refers to the outside diameter (OD) of the tube.

When Do You Need Elbow Adapters?

• Select 3/8″ OD Tubing if your system uses larger tubing.
• We include 2 elbow adapters to connect the inline filter to 3/8″ OD tubing.

✔ No tools required
✔ Push-to-connect installation

When Do You Need a T-Fitting?

A T-fitting (1/4″ stem x 1/4″ OD Tubing x 1/4″ OD Tubing) is helpful if you are:

• Adding the inline filter to an existing 1/4″ RO line
• Want an easier install with a clean branch connection
• Installing between tubing lines without reworking your layout

✔ Optional accessory
✔ Makes installation easier for some setups

Not Sure Which Option to Choose?

• If unsure, select Universal Fit option (Included 4 elbow adapters for 1/4″ & 3/8″ OD Tubing Connection).
• Message us before ordering—we’re happy to help you pick the right fittings.

▶️ Video Installation Guidance

Because RO systems and plumbing layouts can vary, there are multiple valid ways to install an inline filter.

If you are unsure about your setup, we recommend:

• Searching YouTube for “inline RO filter installation”
• Watching a video that best matches your system type
  (under-sink RO, countertop RO, post-filter installation, etc.)

Visual step-by-step videos can be very helpful and often make installation easier and faster.
