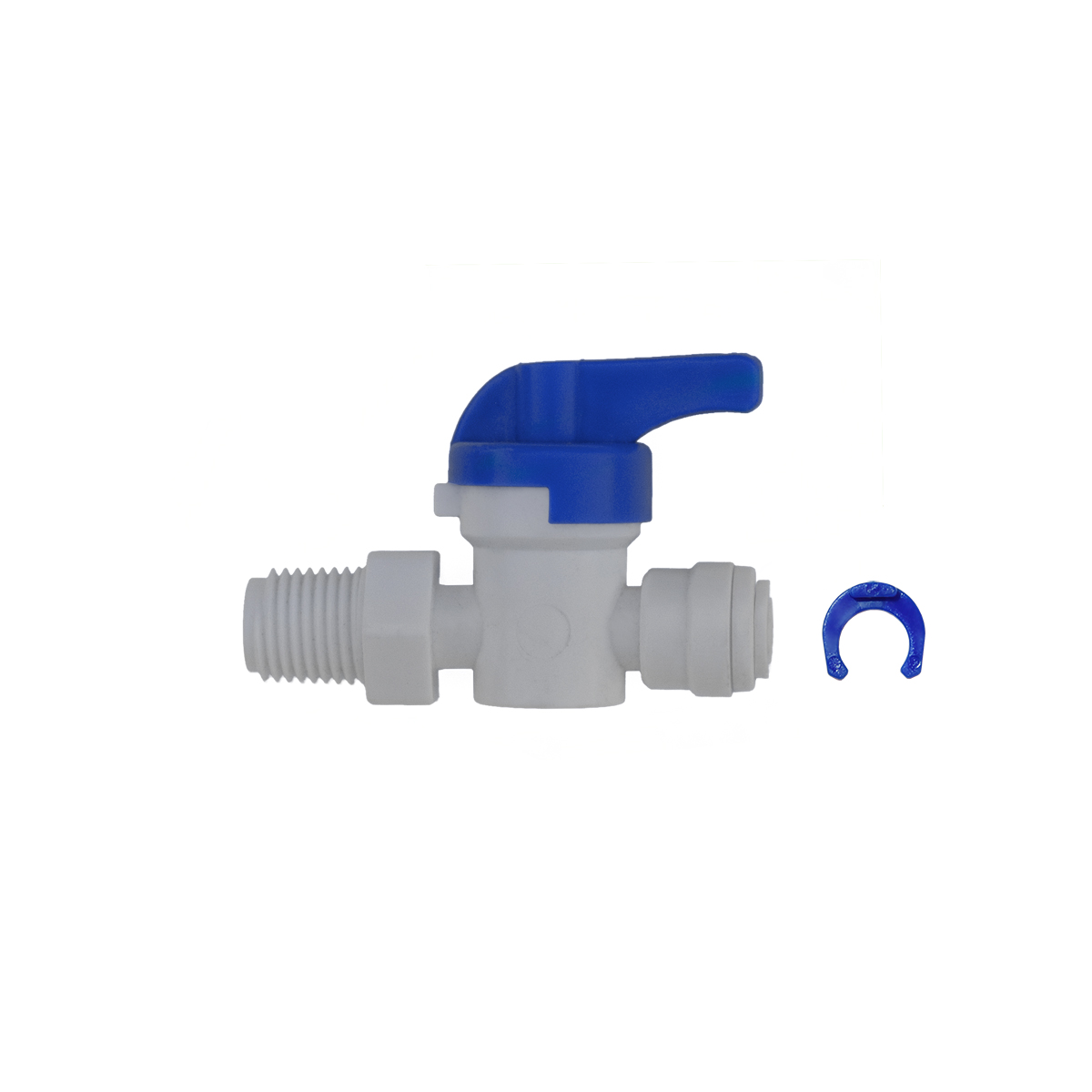

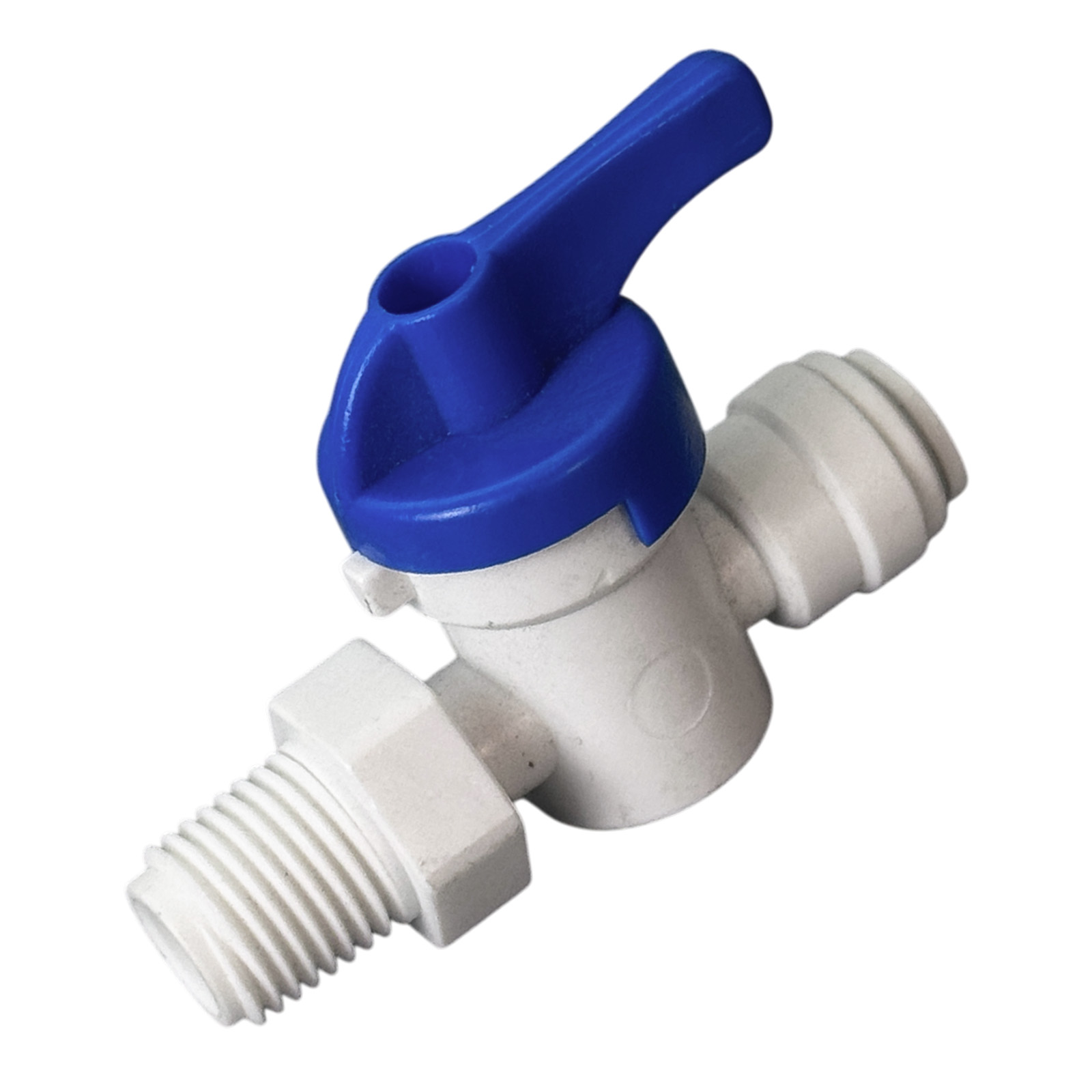

RO Straight Ball Valve – 1/4″ OD Tubing × 1/4″ Thread

This RO Straight Ball Valve is designed to provide reliable manual on/off water flow control
in reverse osmosis (RO) and water filtration systems. It connects 1/4″ OD tubing to a
1/4″ threaded port, allowing easy isolation of water flow for filter replacement,
maintenance, or system servicing.

Purpose

☑ Control water flow in 1/4″ RO tubing lines

☑ Connect tubing to a 1/4″ threaded component with shut-off capability

☑ Ideal for RO systems, countertop RO units, and inline water filtration setups

Key Features

☑ Straight inline ball valve design for minimal flow restriction

☑ Quarter-turn handle for quick and easy operation

☑ Push-to-connect tubing side for fast, tool-free installation

☑ Compatible with standard 1/4″ OD RO tubing

☑ Suitable for potable water and RO filtration applications

Installation Notes (Important)

☑ The 1/4″ threaded side requires plumbing thread seal tape
(PTFE/Teflon tape) to ensure a secure, leak-free connection.
☑ Wrap thread seal tape clockwise around the male threads before installation.
☑ Hand-tighten first, then tighten slightly if needed. Do not overtighten.
☑ Push 1/4″ OD tubing fully into the quick-connect port until it seats completely.

Specifications

Valve Type: Inline Ball Valve

Connection Type: 1/4″ OD Quick-Connect × 1/4″ Thread (Straight)

Tubing Size: 1/4″ OD (Outside Diameter)

Operation: Quarter-turn handle

Application: RO systems, inline water filters, water filtration tubing

Quantity: 1 valve per package
