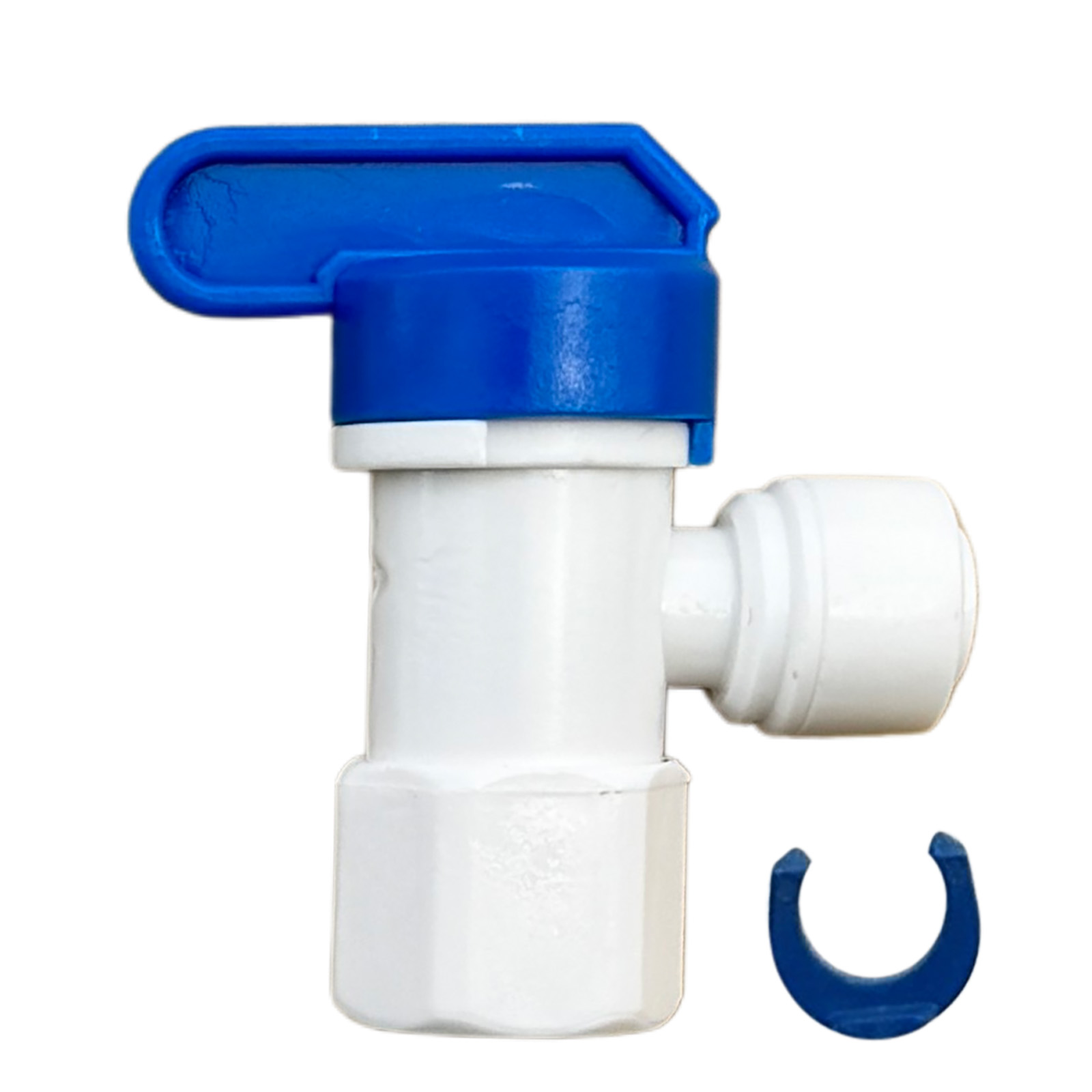

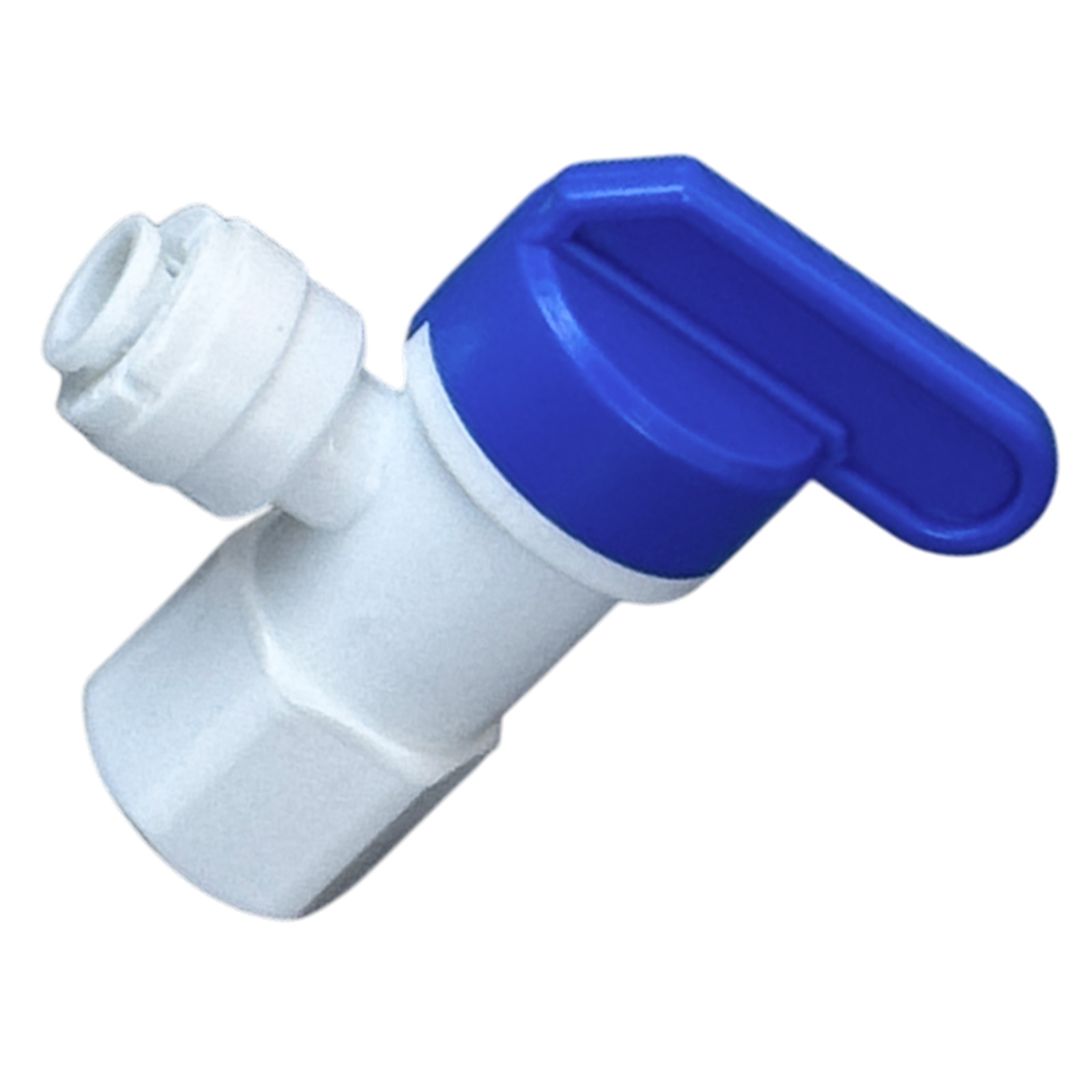

This RO Storage Tank Ball Valve (Tank Shut-Off Valve) is designed for reverse osmosis (RO)
pressurized storage tanks. It features a 1/4″ FPT (female pipe thread) inlet that connects to
the tank stem and a 1/4″ Quick Connect (push-fit) outlet for standard 1/4″ OD RO tubing.
Use it to easily turn your RO tank water supply ON/OFF for service, filter changes, or troubleshooting.

The built-in ball valve provides smooth, reliable shut-off. The quick connect port allows fast installation—
simply push the tubing in until fully seated for a secure, leak-resistant connection.

Key Features

• Application: RO storage tank shut-off / tank valve
• Connections: 1/4″ FPT (tank side) x 1/4″ Quick Connect (tubing side)
• Function: On/Off control for RO tank water outlet
• Easy Install: Push-fit connection for 1/4″ OD RO tubing
• Durable construction for long-term use
• Quantity: 1 valve

Typical Uses

• Reverse osmosis pressurized storage tanks
• RO system maintenance and filter changes
• Tank isolation for troubleshooting or upgrades

Installation Notes

• Wrap the tank stem threads with PTFE (Teflon) tape before installing the valve.
• Hand-tighten first, then snug gently with a wrench—do not overtighten.
• Push 1/4″ OD tubing fully into the quick connect port until it stops.
• To disconnect tubing, press the collet in and pull tubing out.

Note: Designed for standard 1/4″ OD polyethylene RO tubing. Please confirm thread type and size
before ordering.
