Description

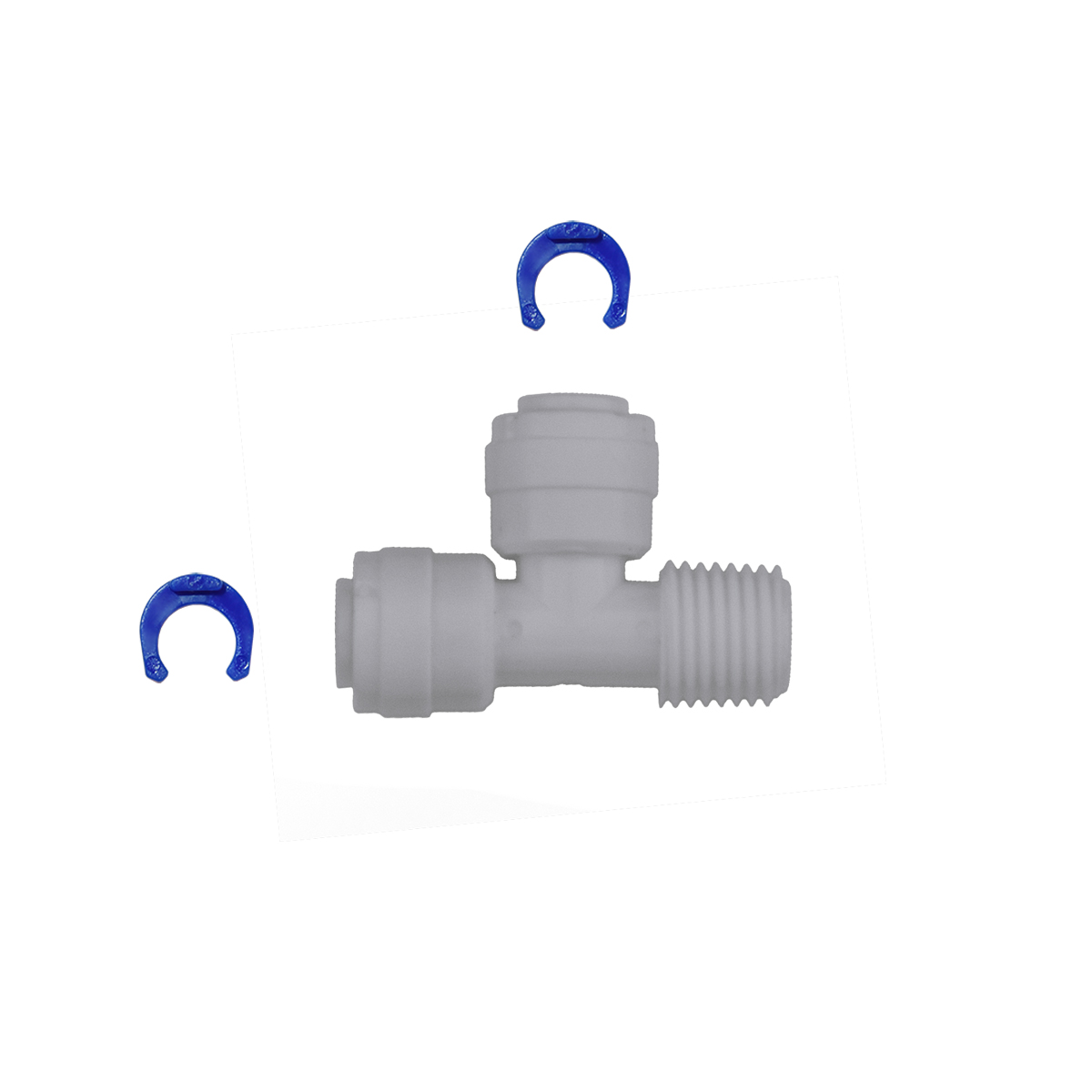

T-Splitter Fitting – 1/4″ OD Tubing × 1/4″ OD Tubing × 1/4″ Thread

This T-Splitter Fitting is designed to create a branch connection in a 1/4″ water line by combining
two 1/4″ OD quick-connect tubing ports with a 1/4″ threaded port. It is ideal for adding
an inline filter, valve, gauge, or secondary device to an existing RO or water filtration system.

Purpose

☑ Split a single 1/4″ water line into two directions

☑ Connect inline filters, valves, or accessories using a threaded port

☑ Ideal for RO systems, countertop RO units, and water filtration setups

Key Features

☑ Quick-connect (push-to-connect) tubing ports for fast, tool-free installation

☑ Tee-shaped design for clean and efficient water line branching

☑ Compatible with standard 1/4″ OD RO tubing

☑ Threaded port allows connection to threaded accessories

☑ Suitable for potable water and RO filtration applications

Installation Notes (Important)

☑ Push 1/4″ OD tubing fully into both quick-connect ports until it seats completely.
☑ The 1/4″ threaded port requires plumbing thread seal tape
(PTFE/Teflon tape) to ensure a secure, leak-free connection.
☑ Wrap plumbing tape clockwise around the male threads before installation.
☑ Check all connections for leaks before placing the system into service.

Specifications

Connection Type: 1/4″ OD QC × 1/4″ OD QC × 1/4″ Thread (Tee)

Tubing Size: 1/4″ OD (Outside Diameter)

Thread Size: 1/4″ Thread

Shape: Tee

Application: Inline water filters, RO systems, water filtration tubing
