Description

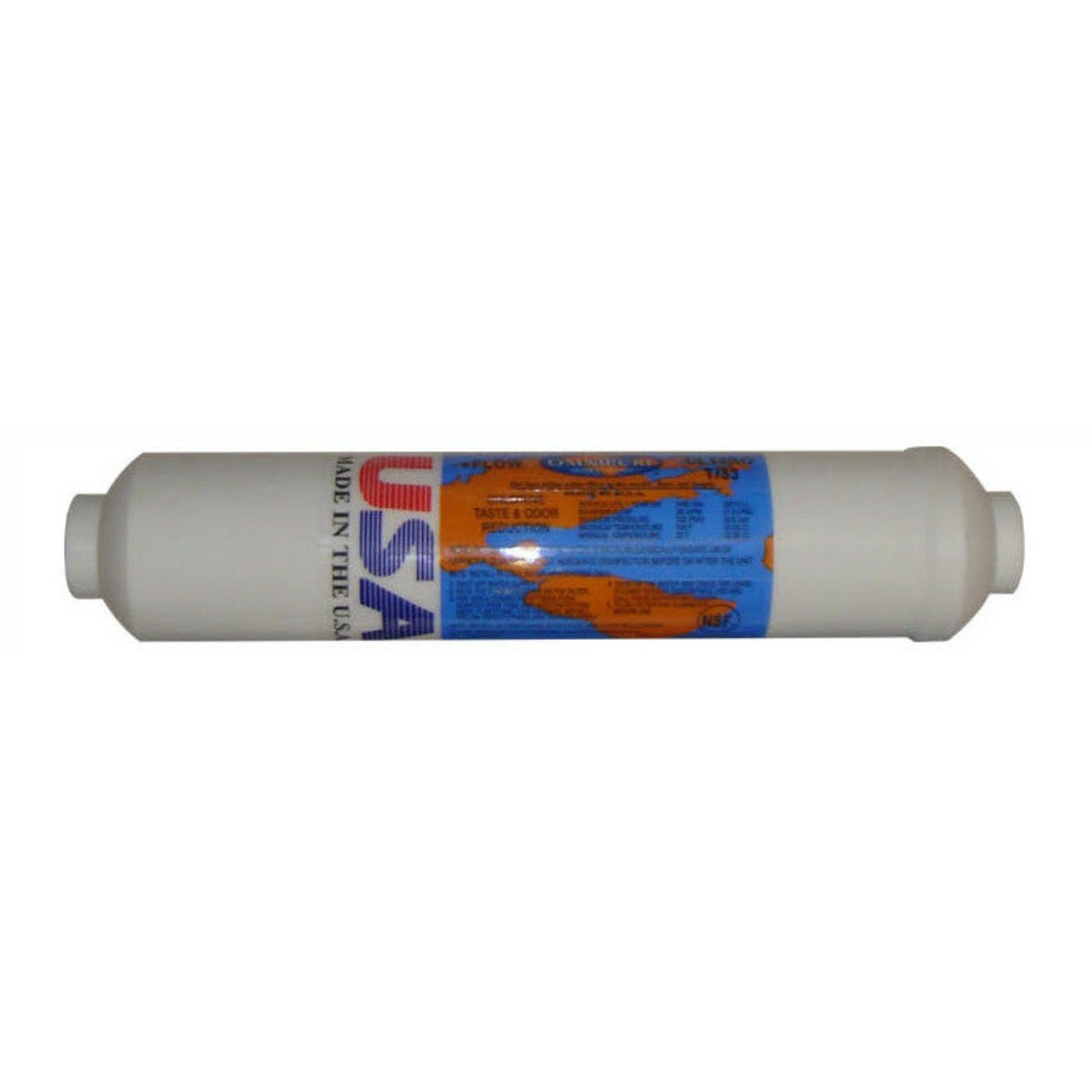

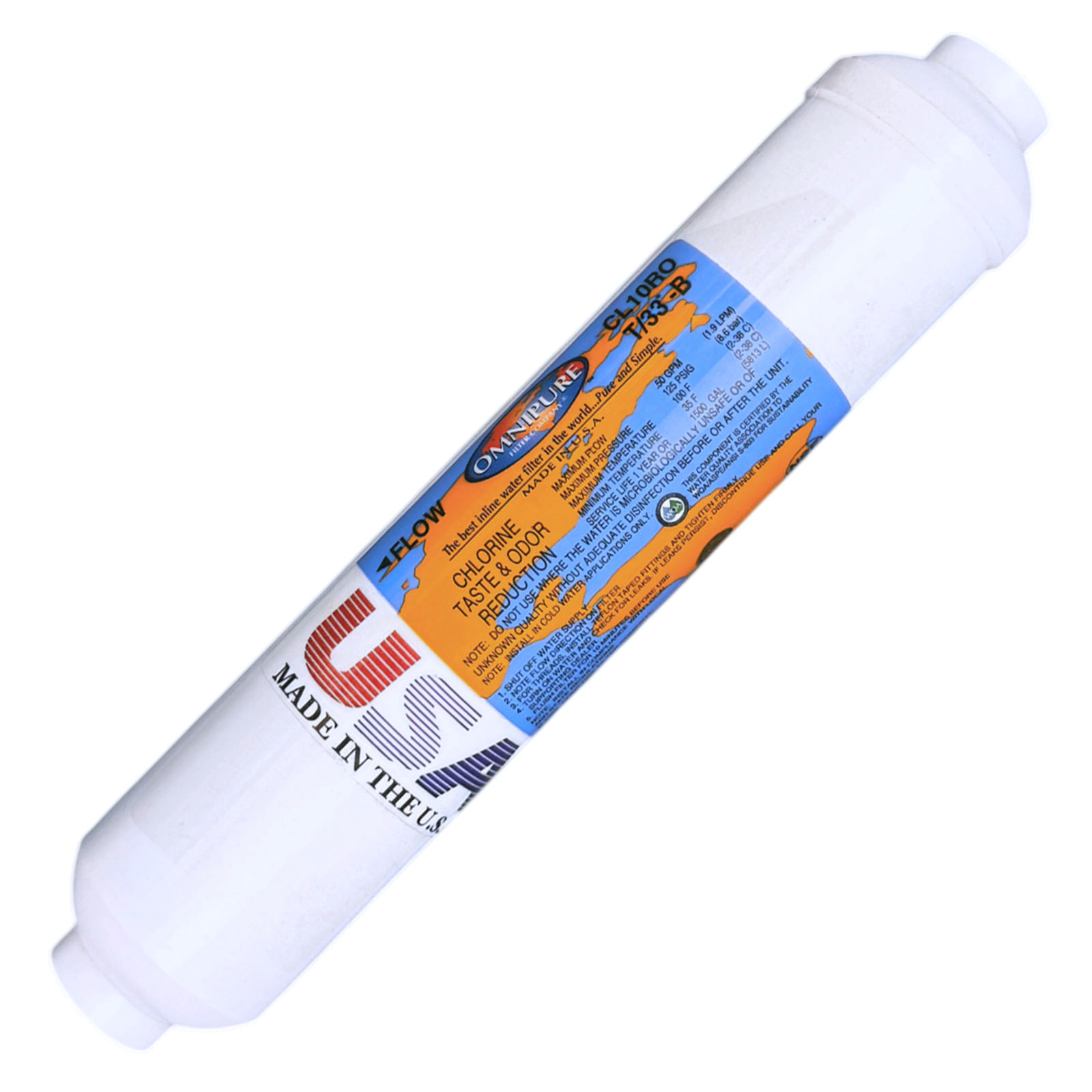

Inline GAC T33 Carbon Filter – NSF/ANSI 42 Certified
Made in USA by Omnipure
The Inline GAC T33 Carbon Filter is designed as the final polishing stage in
reverse osmosis (RO) systems to improve water quality before dispensing. Filled with premium
granular activated carbon (GAC), this filter helps reduce chlorine, chloramine, and other
contaminants that can affect taste and odor.
Commonly used as the last stage in RO systems, it is also suitable for refrigerators and
point-of-use water filtration applications.
Purpose
- Helps reduce chlorine and chloramine
- Helps reduce aluminum, cyanide, and nitrates
- Helps reduce cysts, pesticides, and VOCs
- Improves water taste and odor
Applications
- Final stage in reverse osmosis (RO) systems
- Refrigerator water filtration
- Point-of-use water filters
- Specialty home filtration systems
Key Features
- NSF/ANSI 42 Certified
- Manufactured in the USA by Omnipure
- Premium granular activated carbon (GAC)
- Inline sealed housing for consistent performance
- Easy installation with standard RO tubing
Specifications
- Filter Type: Inline Granular Activated Carbon (T33)
- Connection: 1/4″ FPT
- Flow Rate: 0.50 GPM
- Capacity: 1,500 gallons or 6–12 months
- Operating Temperature: 36°F – 100°F
- Max Pressure: 125 PSI
- Micron Rating (Nominal): Not rated
What’s Included
- Inline water filter
- 2 × 1/4″ thread × 1/4″ OD quick-connect elbow adapters (standard RO setup)
Optional Add-Ons (sold separately):
- Adapters for 3/8″ OD tubing
- 1/4″ T-fitting
SKU: CL10ROT33-B
🔧 Installation Tips
Tubing Size
- Most RO systems use 1/4″ OD tubing (standard RO size).
- Some countertop RO systems and specialty setups use 3/8″ OD tubing.
- Tubing size refers to the outside diameter (OD) of the tube.
Elbow Adapters (Threaded Port)
- This inline filter features 1/4″ threaded ports.
- We ship it standard with 1/4″ thread × 1/4″ OD elbow adapters for typical RO installations.
- If your system uses 3/8″ OD tubing, select the 3/8″ adapter option to receive the correct elbow fittings.
✔ No tools required
✔ Remove the end cap and screw the elbow adapters onto the openings
✔ Push-to-connect installation for tubing
When Do You Need a T-Fitting?
A T-fitting (1/4″ stem × 1/4″ OD tube × 1/4″ OD tube) can be helpful if you are:
- Adding the inline filter to an existing 1/4″ RO line
- Looking for a cleaner branch connection
- Installing the filter without reworking your tubing layout
✔ Optional accessory
✔ Makes installation easier for some setups
Not Sure Which Option to Choose?
- If unsure, select Universal Fit option (Included 4 elbow adapters for 1/4″ & 3/8″ OD Tubing Connection)
▶️ Video Installation Guidance
Because RO systems and plumbing layouts can vary, there are multiple valid ways to install an inline filter.
If you are unsure about your setup, we recommend:
- Searching YouTube for “inline RO filter installation”
- Watching a video that matches your system type
(under-sink RO, countertop RO, post-filter installation, etc.)
Visual step-by-step videos are often very helpful and can make installation easier and faster.
