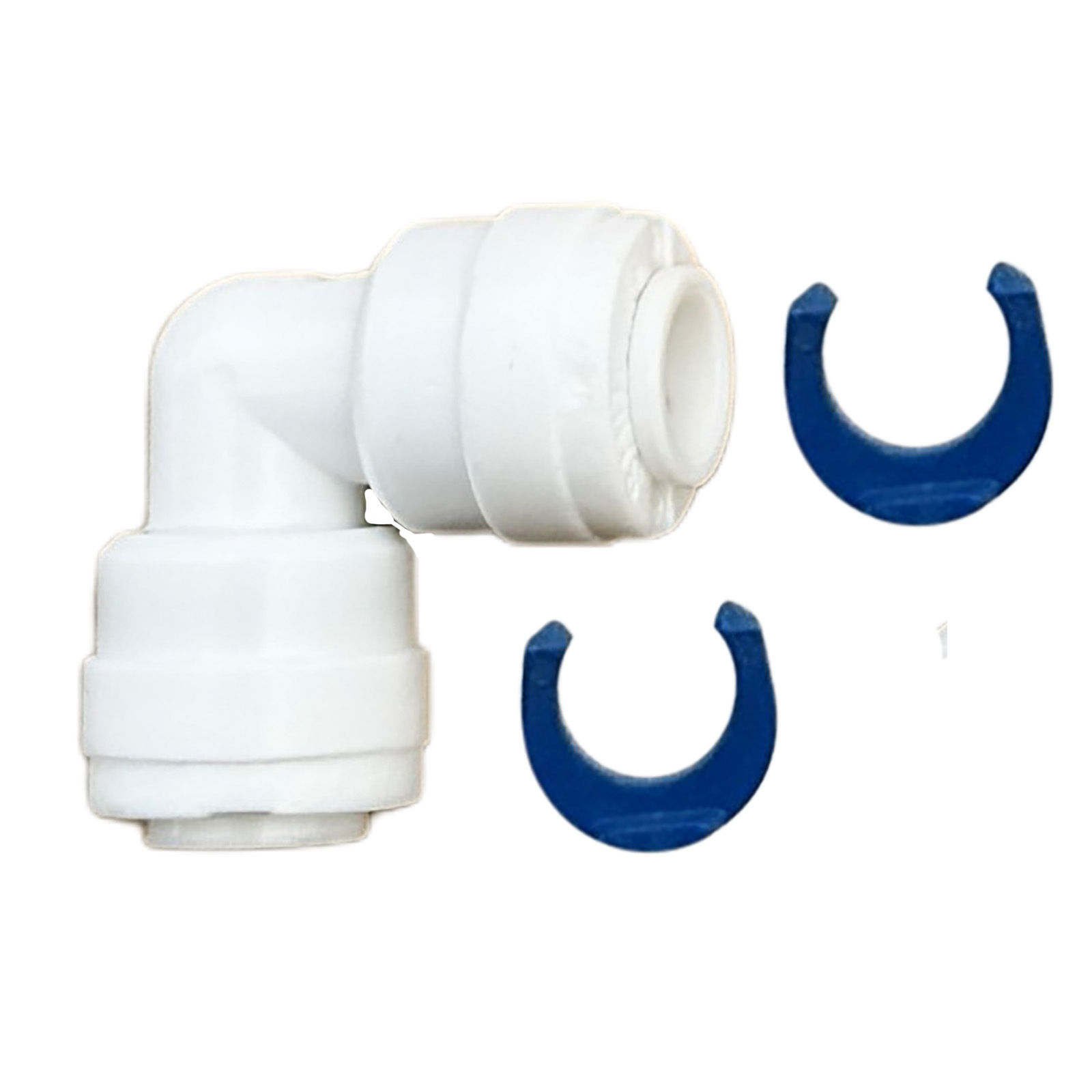

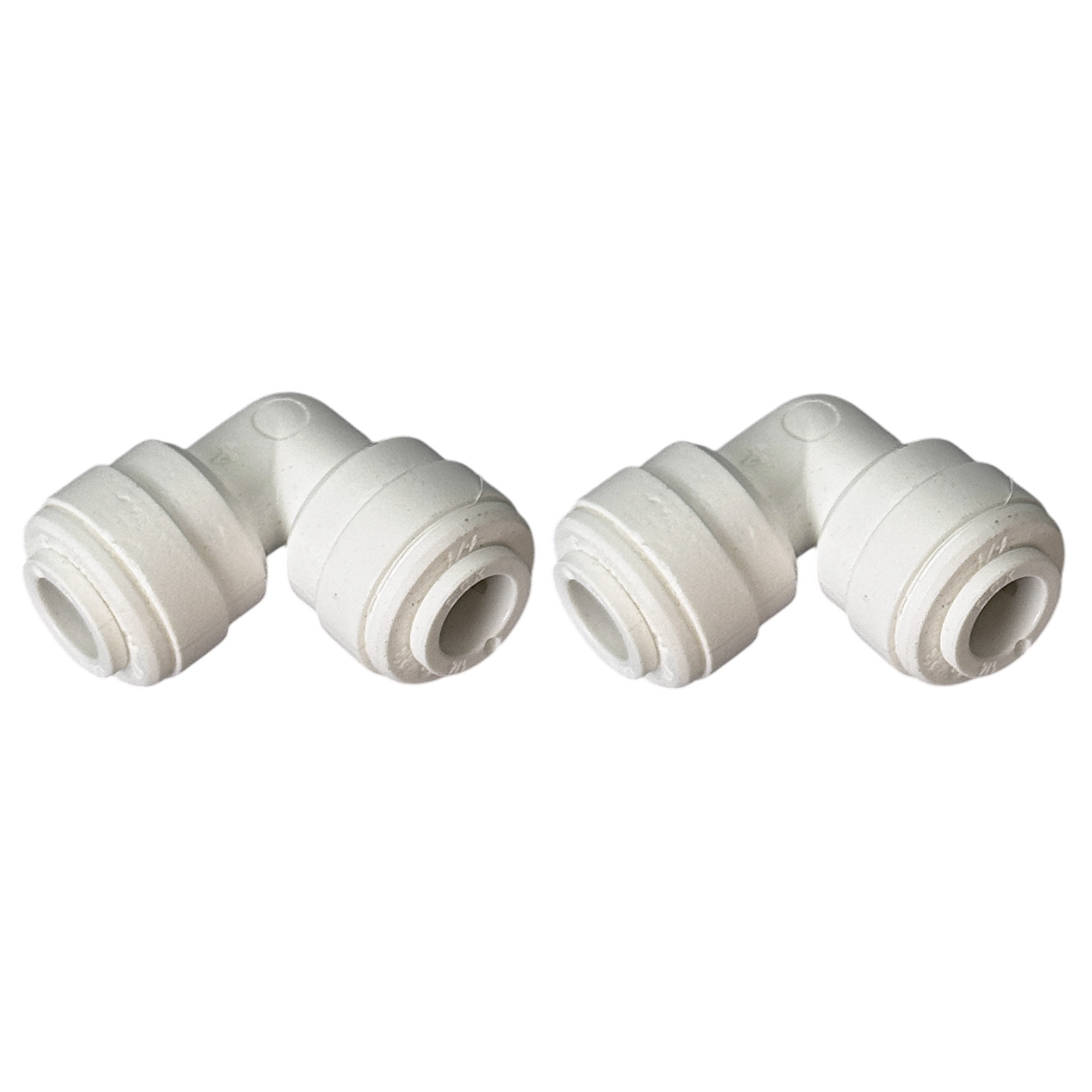

A push-to-connect 90° elbow that joins two lengths of 1/4″ OD tubing — both ends quick-connect, no thread, no tape. Redirects a tubing run around a corner or obstacle without kinking.

What it does

This tube-to-tube elbow connects 1/4″ OD tubing to 1/4″ OD tubing at a 90-degree angle. Both ends are push-to-connect — no threads, no tape, no tools. It redirects a tubing run around a corner, behind a cabinet, or past an obstacle cleanly and without the kink risk you get from bending the tube itself.

Unlike the MNPT elbows (which have a threaded port side), this fitting is tube-on-both-ends — it goes inline between two sections of tubing, not into a threaded housing port. Use it anywhere you need a clean 90° turn in a 1/4″ line.

Key benefits

• ✓1/4″ QC × 1/4″ QC — push-fit on both ends, pure tube-to-tube
• ✓90° elbow — clean direction change without kinking the tube
• ✓No tape, no tools — O-ring sealed push-fit connection
• ✓Compact design for tight spaces — behind countertop units, under sinks
• ✓Works with RO systems, inline filters, fridges, ice makers & beverage systems
• ✓Automatic quantity discounts starting at 2 units

Specifications

Compatibility

Often used with

Good to know before you buy

• Cut tubing square (90°) before pushing into each port.
• Push tubing fully in until it seats. Give each tube a gentle tug to confirm.
• O-ring sealed — no thread tape needed.
• To disconnect, press the collet ring in and pull the tube straight out. A collet release tool makes this easier.
• Check both connections for leaks before putting the system into service.
