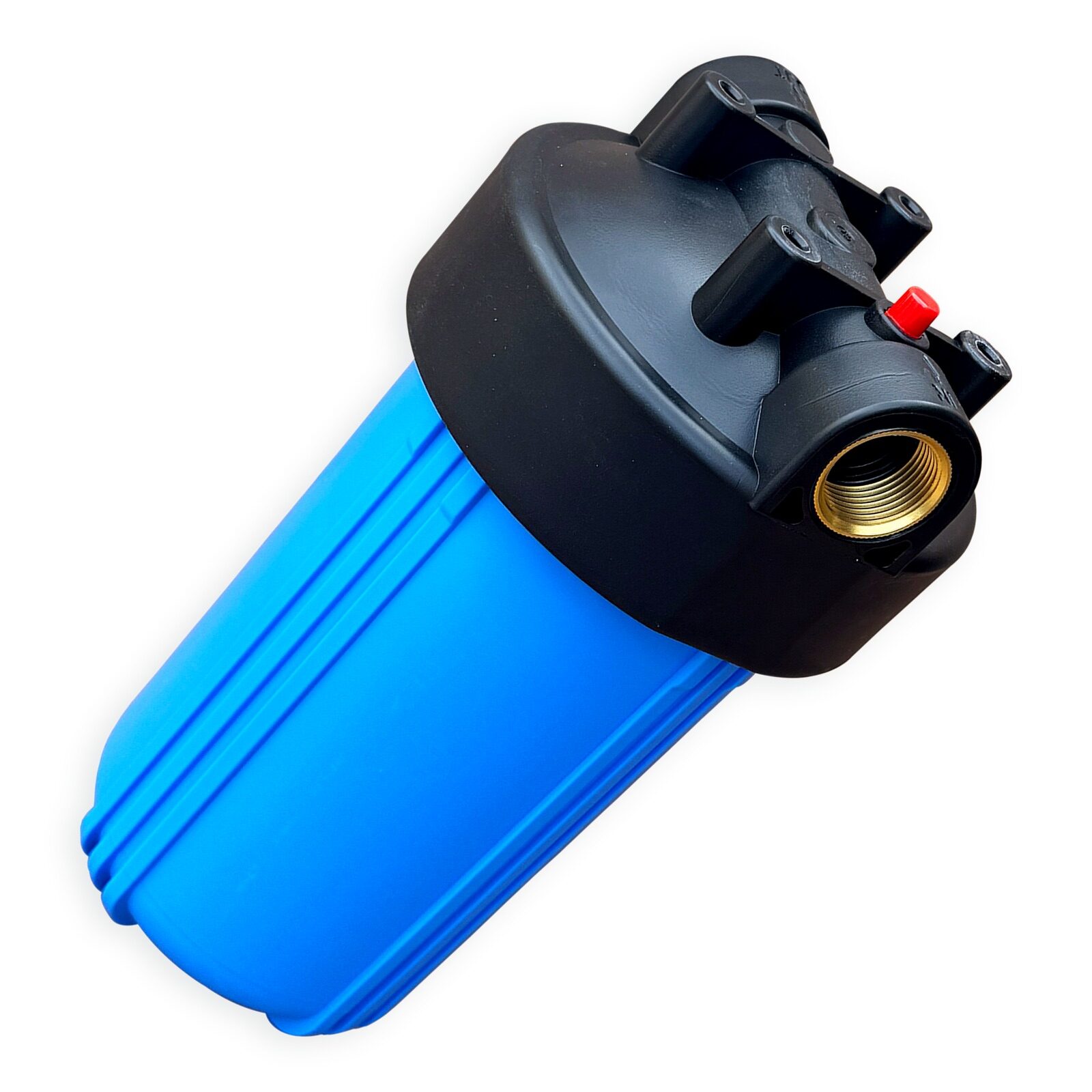

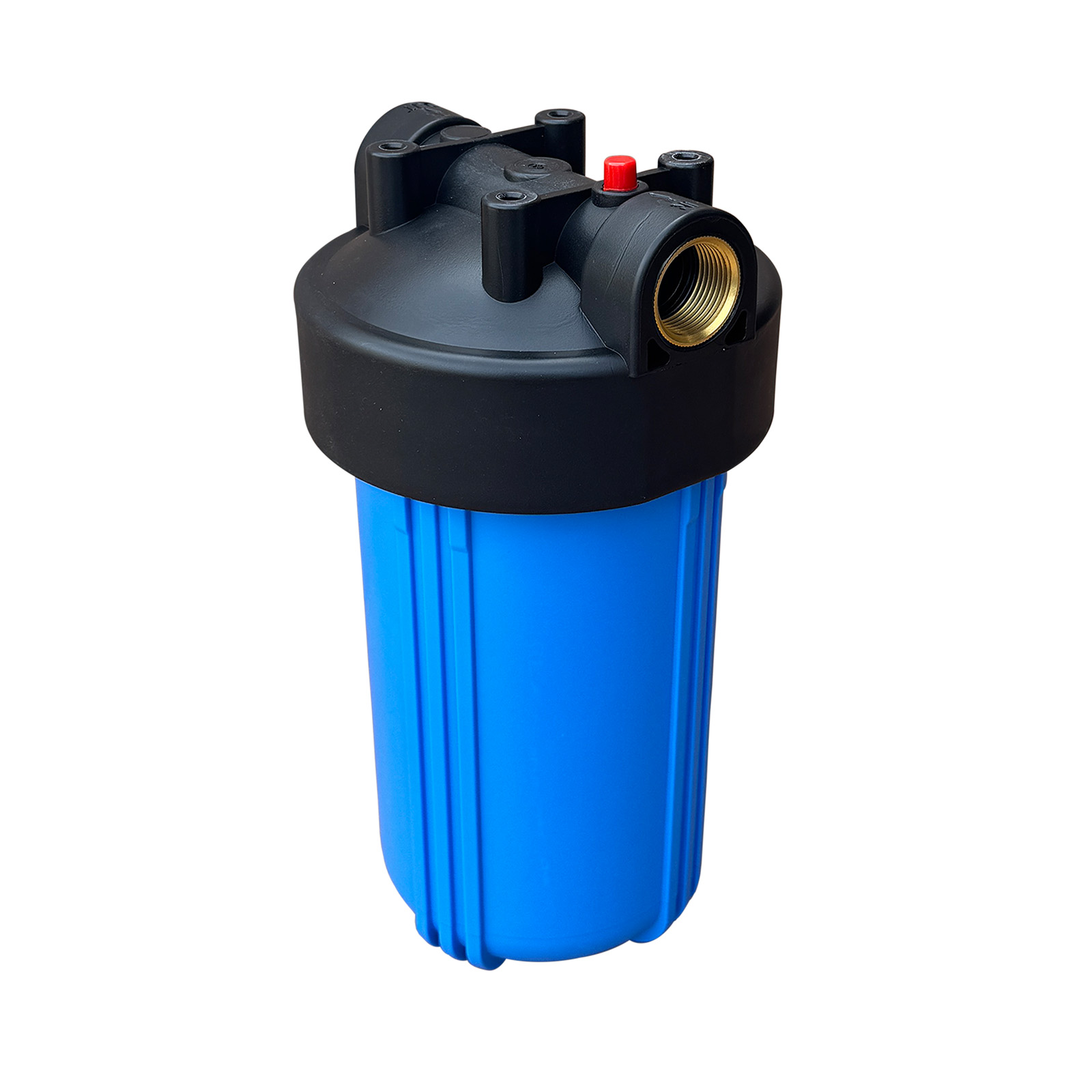

Heavy Duty BB Whole House Filter Housing – 10″ × 4.5″, 1″ NPT Brass Thread Inserts, Pressure Release Button, Blue

$39.90

  • Heavy-duty whole house filter housing for standard 10″ × 4.5″ BB cartridges
  • 1″ NPT ports with brass thread inserts, so fittings don’t strip the plastic
  • Pressure release button for cleaner filter changes
  • Both O-rings installed · rated 85 PSI · about 5-year service life
  • Takes the Big Blue®† cartridge size

† Big Blue® is a registered trademark of Pentair. Used only to describe size; My Water Club is not affiliated with Pentair.

<1
$39.90
1
$39.90 each
2 - 4
$34.90 each
5 - 9
$33.90 each
10 - 19
$31.95 each
20+
$29.95 each

Description

Fits Cartridge
10″ × 4.5″
Ports
1″ NPT
Thread Inserts
Brass
Pressure Release
Yes
Max Pressure
85 PSI

This heavy-duty BB whole house filter housing takes standard 10″ × 4.5″ cartridges. It has 1″ NPT ports with brass thread inserts, plus a pressure release button for cleaner filter changes, and it ships with both O-rings installed.

What the whole house filter housing does

Heavy-duty 4.5″-wide housings are the workhorses of whole house filtration. A 10″ × 4.5″ cartridge holds about three times the media of a slim 10″ × 2.5″ cartridge, so it lasts longer between changes and handles household flow with less pressure drop. This BB filter housing has a heavy polypropylene body, a blue sump and 1″ NPT inlet and outlet ports.

Two features make it easier to live with than a basic housing:

  • Brass thread inserts in the inlet and outlet ports. Your fittings thread into metal instead of plastic, so the ports are much less likely to strip or crack from installer torque and years of temperature changes.
  • Pressure release button on the cap. After you close the shut-off valves, press it to let the trapped pressure out, and the sump comes off without a spray of water.

It takes standard 10″ × 4.5″ BB cartridges: sediment, carbon block, GAC and specialty media such as KDF, iron and scale. Use it alone as a single-stage filter, or join several with 1″ union nipples to build a 2- or 3-stage system.

Key benefits

  • ✓Brass thread inserts — metal-reinforced 1″ ports instead of plastic threads
  • ✓Pressure release button — relieve pressure before opening, for cleaner filter changes
  • ✓1″ NPT high-flow ports — sized for whole house flow
  • ✓Takes standard 10″ × 4.5″ cartridges — sediment, carbon and specialty media
  • ✓Both O-rings installed — ready to plumb in
  • ✓Opaque blue sump blocks light, which helps limit algae growth inside the housing
  • ✓Typical service life 5 years in normal residential use

Specifications

Fits Standard 10″ × 4.5″ (BB) cartridges — same size as Pentair Pentek Big Blue® #10 cartridges†
Ports 1″ NPT (inlet & outlet)
Thread inserts Brass (metal-reinforced)
Pressure release Built-in button on the cap
Max pressure 85 PSI — install a pressure regulator if your line pressure is higher
Material / color Heavy-duty polypropylene, blue sump

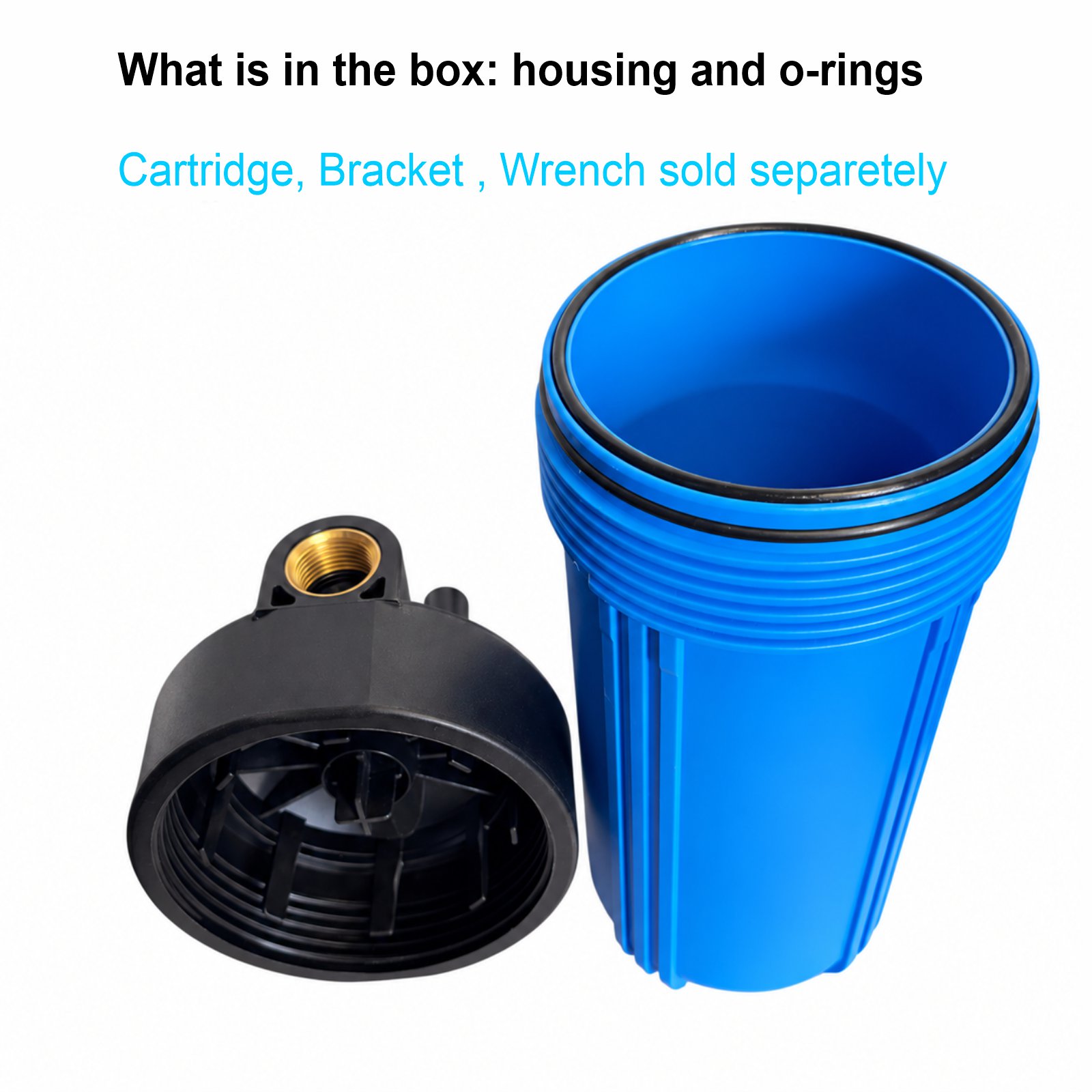

In the box Housing (cap + sump) with both O-rings installed. Cartridge, bracket and wrench sold separately.
Typical service life 5 years

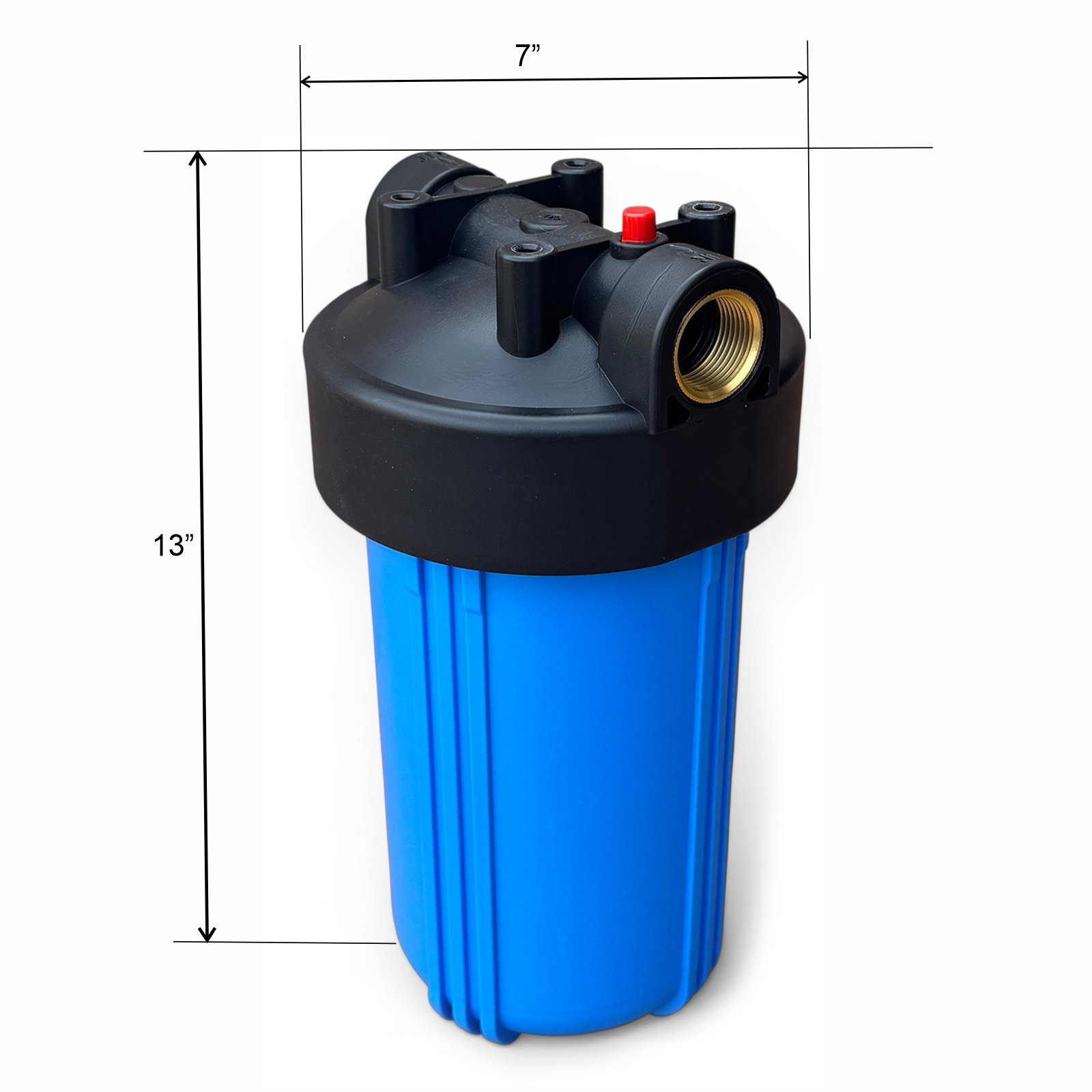

Housing dimensions About 7 × 7 × 13 in (W × D × H)
Weight 6.25 lb
Sold as Single housing (1 unit)
Brand MyWaterClub
SKU HOUSING10BB (also: WHS-1H-10BB)

Compatibility

✓ Works with
  • Standard 10″ × 4.5″ cartridges — sediment, carbon, KDF and other specialty media
  • 1″ NPT plumbing and 1″ union nipples
  • Single-, dual- and triple-stage home systems
  • My Water Club heavy-duty single, dual and triple brackets
× Not for
  • Slim 10″ × 2.5″ cartridges (too narrow — use a slim housing)
  • 20″ × 4.5″ cartridges (too long)
  • 3/4″ or 1½″ NPT plumbing without adapters
  • Hot-water lines — cold water only
  • Line pressure above 85 PSI without a regulator
  • Locations that can freeze

Often used with

5 Micron Sediment Cartridge
SED5-10BB — Stage 1 pre-filter

View product →

Carbon Block Cartridge
CTO-10BB — chlorine, taste & odor

View product →

Heavy Duty Housing Wrench
Fits this housing (1″ ports)

View product →

Heavy Duty Single Bracket
Wall mount — also dual & triple

View product →

1″ Union Nipple
Joins housings into a 2- or 3-stage system

View product →

PTFE Thread Seal Tape
For the inlet/outlet pipe threads

View product →

Browse all 10″ × 4.5″ BB cartridges & sets → · Heavy-duty BB parts →

Installer & plumber bulk pricing
Automatic quantity discounts apply as you scale up. Buying housings in quantities of 10 or more? Contact us for installer pricing or case-quantity discounts.

Good to know before you buy

  • Check your water pressure. The housing is rated 85 PSI. If your pressure runs higher, install a pressure regulator or 70 PSI pressure limiting valve ahead of it.
  • At every filter change: close the shut-off valves, press the pressure release button until the hissing stops, then loosen the sump.
  • Don’t install where it can freeze. Water expands as it freezes and will crack the housing. Unheated garages and outbuildings in cold climates need heat tape or an indoor location.
  • Use PTFE tape on the port threads. The brass inserts thread cleanly, so there’s no need to over-torque.
  • Hand-tighten the sump snugly, then add up to a quarter turn with the housing wrench. Over-tightening can crack the plastic and pinch the O-ring.
  • Lightly grease the O-ring with food-grade silicone grease at each filter change. It keeps the O-ring supple and stops it rolling out of its groove.
  • Keep it out of direct sunlight, which slowly weakens the plastic. Replace the housing every 5 years, or sooner if you see cracks, stress marks around the threads, or seepage at the seal.

† Big Blue® and Pentek® are registered trademarks of Pentair. My Water Club is not affiliated with, sponsored by or endorsed by Pentair. These names are used only to describe size and compatibility.
