SKU: SED5-10BB Category: Tag Brand:

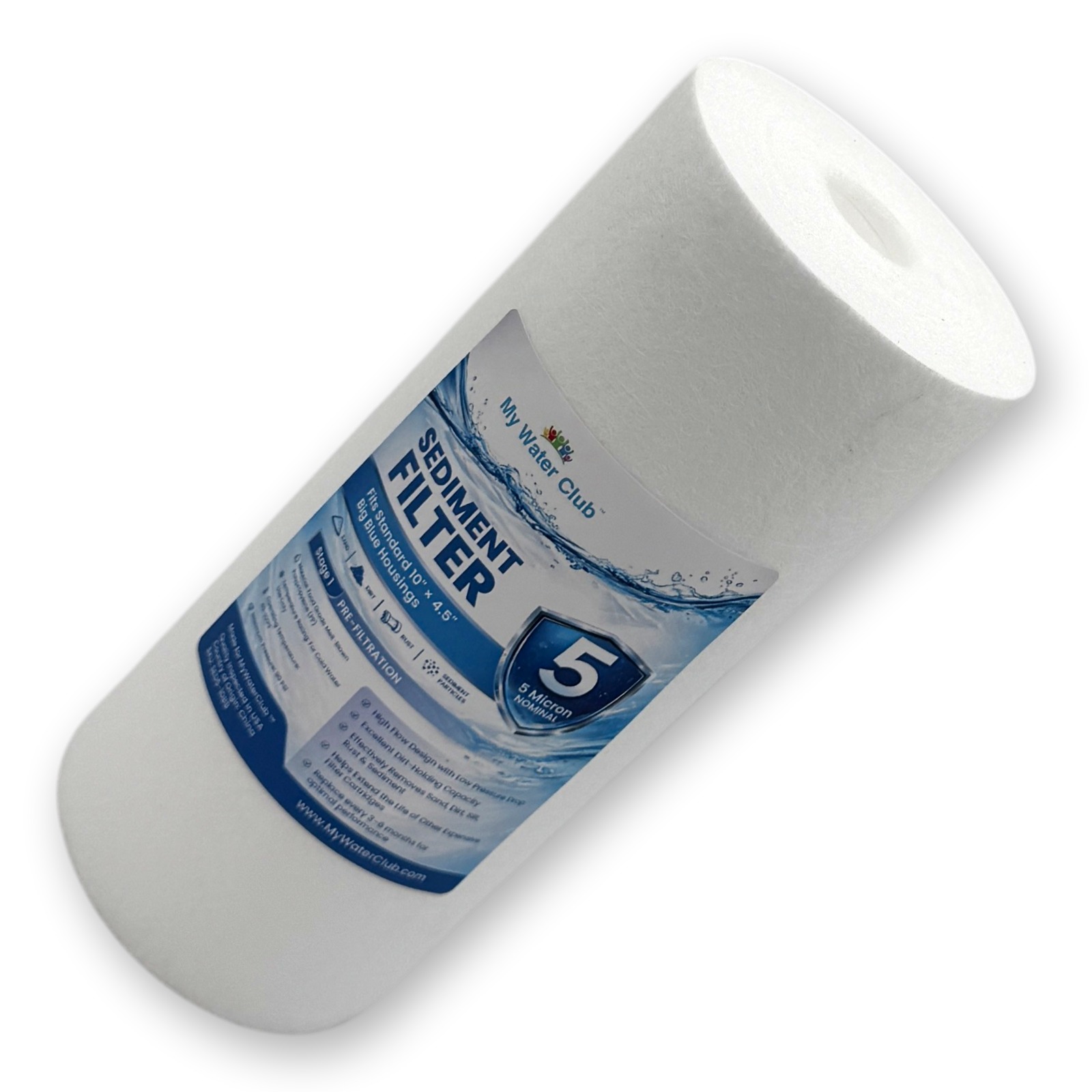

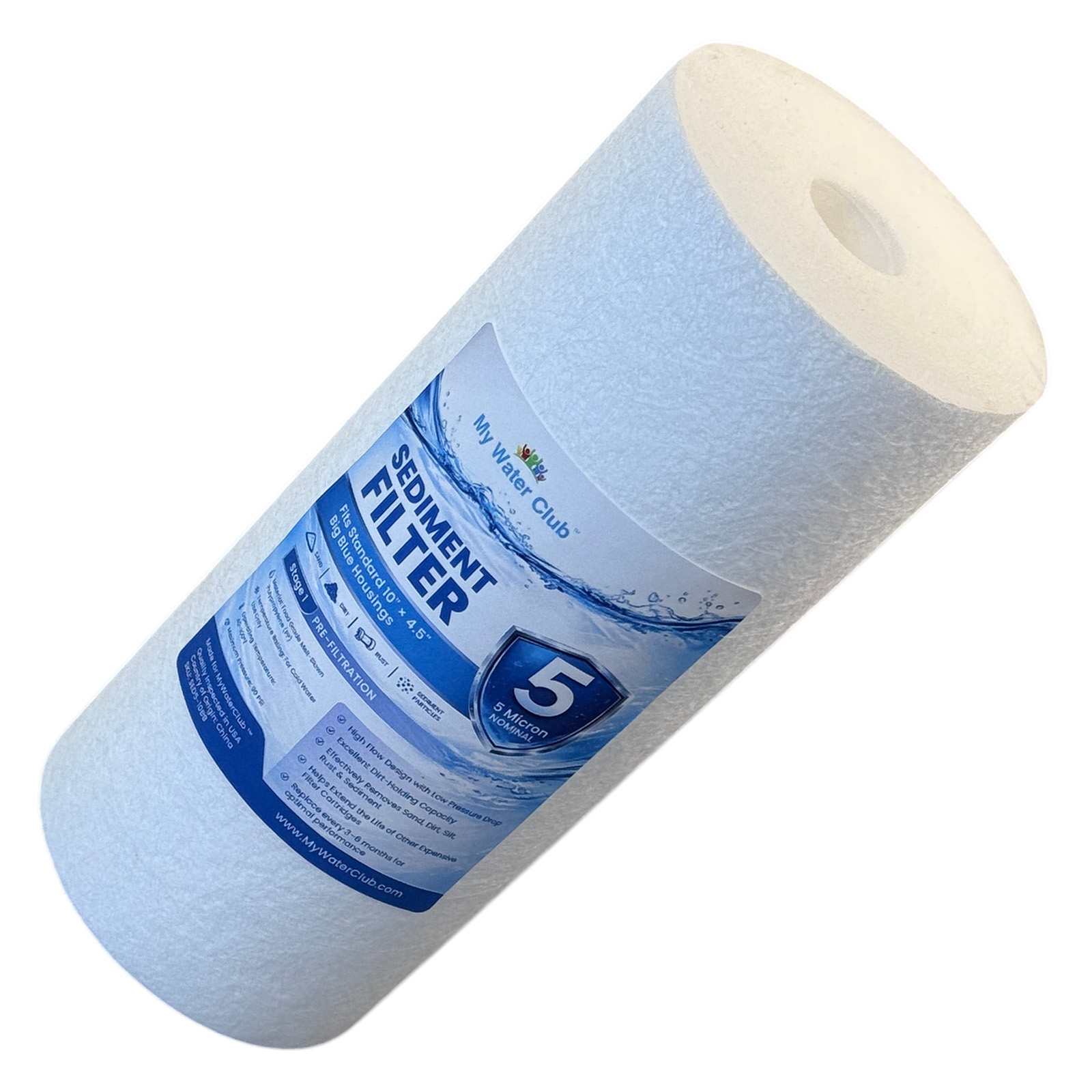

5 Micron Sediment Filter Cartridge, Heavy Duty BB 10″ × 4.5″ Whole House Replacement, Melt-Blown Polypropylene Stage 1 Pre-Filter

$9.95

  • 5 micron sediment filter: melt-blown polypropylene that reduces dirt, silt, sand & rust particles
  • Standard 10″ × 4.5″ size (9¾″ actual): fits heavy-duty whole house housings
  • Stage 1 pre-filter: protects carbon & specialty stages, water heaters and appliances
  • Up to 15 GPM · max 90 PSI · replace every 3–6 months
  • Fits all My Water Club 10″ × 4.5″ systems & the HOUSING10BB housing
<1
$9.95
1
$9.95 each
2 - 4
$8.95 each
5 - 9
$7.95 each
10 - 19
$6.95 each
20+
$5.95 each

Description

A high-capacity 5 micron sediment filter in heavy-duty 10″ × 4.5″ (BB) size that captures dirt, silt, sand and rust particles at whole-house flow rates — the essential first stage that protects every filter after it.

Stage
Stage 1 · Pre-filter
Size
10″ × 4.5″ BB
Micron
5 µm nominal
Life
3–6 months
Fits
Standard 10″ × 4.5″ BB housings

What this 5 micron sediment filter does

This 5-micron melt-blown polypropylene sediment cartridge is the first stage of a whole-house filtration system. Installed on the main water line, it captures dirt, silt, sand and rust particles as water enters your home — before that grit can reach anything downstream.

The oversized heavy-duty 10″ × 4.5″ format holds far more media than a slim 10″ × 2.5″ cartridge, which means higher flow with less pressure drop and much greater dirt-holding capacity — exactly what a whole-house line demands. Its graded melt-blown structure traps larger particles in the outer layers and finer ones toward the core, so the cartridge loads evenly instead of blinding off at the surface.

Trapping particulate up front does two jobs: it keeps your water clear, and it protects everything downstream — carbon cartridges, specialty media, plumbing fixtures, water heaters, and appliances all last longer when they aren’t clogged by sediment. Replacing an inexpensive sediment filter on schedule is the cheapest way to extend the life of pricier stages.

Key benefits

  • ✓ 5-micron nominal filtration for effective sediment reduction
  • ✓ Reduces dirt, silt, sand & rust particles
  • ✓ High-flow heavy-duty 10″ × 4.5″ design with low pressure drop
  • ✓ Excellent dirt-holding capacity — fewer changes than slim cartridges
  • ✓ Extends the life of carbon & specialty media stages
  • ✓ Replaces same-size 5 micron cartridges from Culligan, iSpring, Hydronix, Watts & more*

Specifications

Cartridge type Melt-blown polypropylene sediment
Nominal size 10″ × 4.5″ (9¾″ × 4.5″ actual), standard BB size
Fits Standard 10″ × 4.5″ (BB) housings — same size as Pentair Pentek Big Blue® #10 cartridges†
Micron rating (nominal) 5 micron
Recommended position Stage 1 (pre-filter)
Operating temperature 40 °F – 100 °F (cold water use)
Max flow rate Up to 15 GPM
Max pressure 90 PSI
Typical life 3–6 months (varies with water quality & usage)
Compatible with* Culligan CW5-BBS · iSpring FP15B · Hydronix SDC-45-1005 · Watts PWMB10FFM5 + 14 more brands — full list ↓
Brand MyWaterClub (made for MyWaterClub)
SKU SED5-10BB

Helps reduce

What this cartridge targets — and what it isn’t built for.

Dirt & silt
Sand
Rust particles
Hardness / scale
Chlorine / taste
Iron / H₂S
Dissolved chemicals

Which 10″ × 4.5″ cartridge do I need?

The MyWaterClub heavy-duty 10″ × 4.5″ range by stage. Your current filter is highlighted — tap any other name to view it.

Cartridge Type Best for
Stage 1 — Sediment
SED5-10BB (this filter) Melt-blown sediment · 5 µm Whole-house pre-filtration · municipal or moderate sediment
Pleated sediment Washable pleated polyester · 5 µm Well water or heavy sediment · rinse and reuse
Carbon stages — high flow (GAC)
GAC-10BB Granular activated carbon · 25 µm High-flow chlorine, taste & VOC reduction — best value
CGAC-10BB Coconut shell GAC · 25 µm Premium taste & VOC reduction at full GAC flow
Carbon stages — fine polishing (block)
CTO-10BB Carbon block (CTO) · 10 µm Everyday chlorine, taste & odor polishing — best value
CACB-10BB Premium coconut carbon block · 10 µm Best taste & odor polishing · longest carbon life (6–12 mo)
Specialty media
Catalytic carbon Catalytic activated carbon · 25 µm Chloramine-treated city water · chlorine & H₂S
Catalytic carbon + KDF-85 Catalytic carbon + KDF-85 · 25 µm Chloramine, H₂S & some heavy metals
Bone Char 10BB Bone char carbon · 25 µm Helps reduce fluoride (plus taste & odor)
IRON-10BB Iron-removal + softening resin Clear-water (dissolved) iron · light softening
SCALE-10BB Scale-inhibitor media Scale protection for heaters & appliances (does not remove hardness)

Browse all 10″ × 4.5″ BB cartridges & sets → · Specialty media →

Good to know before you buy

Always the first stage. Sediment goes before carbon and specialty media. Capturing grit up front is what protects those pricier stages — install this ahead of any other 10″ × 4.5″ cartridge.

Heavy-duty 10″ × 4.5″ vs. slim 10″ × 2.5″. Same job, much bigger body: more media surface means higher flow, less pressure drop, and longer intervals between changes. If your housing takes standard 10″ × 4.5″ (BB) cartridges — often called Big Blue® size — this is your size†. A slim cartridge will not seal in it.

When to change it. Replace every 3–6 months. Shorter if your water carries more sediment or you notice a pressure drop — a clogged sediment filter chokes flow to the whole house.

Compatible housings & replacement cartridges

SED5-10BB is a standard 10″ × 4.5″ melt-blown cartridge (9¾″ × 4.5″ actual), rated 5 micron. It fits the housings below and can replace the same-size 5 micron sediment cartridges listed after them.*

Housings & systems it fits

Brand Housing / system model
My Water Club WHS-1S-10BB, WHS-2SC-10BB-E, WHS-3SGC-10BB-E, WHS-3SGCACB-10BB-A · HOUSING10BB housing — Stage 1
Pentek† Big Blue® #10 (10″ × 4.5″) housings†
Culligan HD-950A, HD-950, WH-HD200-C heavy-duty housings
GE GXWH40L, GXWH35F, GXWH30C whole home systems
3M Aqua-Pure AP801 whole house housing
iSpring WGB21B, WGB21BM 2-stage systems — Stage 1 only
Express Water 4.5″ × 10″ whole house systems — sediment stage
Whirlpool WHKF-DWHBB large-capacity whole home system
American Plumber W10-PR, W15-PR, W10-BC heavy-duty housings
Watts W10FFPH1CBPR 10″ full-flow housing
Waterdrop WD-WHF21-PG 2-stage system — Stage 1 only
VIQUA UV systems that use a 10″ × 4.5″ sediment pre-filter (e.g. IHS12-D4)

Replacement for Culligan CW5-BBS, iSpring FP15B, Hydronix SDC-45-1005 & more

Brand Cartridge model it can replace Their cartridge type
Pentek† DGD-5005 (155357-43) Dual-gradient spun PP
Culligan CW5-BBS Wound polypropylene
3M Aqua-Pure AP810 Grooved PP
iSpring FP15B Polypropylene, layered
Express Water FLTWH1045S Polypropylene, density-graded
Hydronix SDC-45-1005 · SWC-45-1005 Depth PP · string wound
Watts PWMB10FFM5 · PWSW10FFM5 · WPC5FF975 Melt-blown · string wound · pleated
American Plumber WDGD-5005 Dual-gradient PP
Waterdrop WD-WF99 Polypropylene
KleenWater KW4510G-5M (formerly PWF4510G) Melt-blown PP
Tier1 P5-10BB Spun polypropylene
Filters Fast FFDG-10BB-5 Dual-gradient PP
USWF MB5-1045 Melt-blown PP
AXEON SDF-45-1005 Polypropylene depth
VIQUA CMB-510-HF Polypropylene
Aqua Flo (WaterGroup) 36281 Melt-blown PP

Also searched as: DGD5005 · 15535743 · CW5BBS · SDC451005 · PWMB10FFM5 · WDGD5005

Check before you order. Your old cartridge should be about 4.5″ across and 9¾–10″ long, with an open center hole at both ends. Not sure? Send us a photo of the cartridge label and we’ll confirm the fit.

Replacing a coarser cartridge? If yours is 20–50 micron (for example Culligan P25-BBSA or R50-BBSA, or Whirlpool WHKF-GD25BB), SED5-10BB fits the same housing but catches finer particles, so on heavy sediment it may need changing sooner. For heavy sediment, the washable pleated SED5-PLT-10BB is the better match.

Fit questions

Does SED5-10BB replace the Pentek DGD-5005?

It fits the same Big Blue® #10 housings† and has the same 5 micron rating and 10″ × 4.5″ size. The DGD-5005 is a dual-gradient spun cartridge; SED5-10BB is a graded melt-blown cartridge.

Does SED5-10BB fit the Culligan HD-950A housing?

Yes. The HD-950A, HD-950 and WH-HD200-C take standard 10″ × 4.5″ cartridges, so SED5-10BB drops in where the Culligan CW5-BBS goes. Both are rated 5 micron.

Can I use it instead of Hydronix SDC-45-1005 or Watts PWMB10FFM5?

Yes, for most homes. All three are 5 micron, 4.5″-diameter polypropylene sediment cartridges about 9¾–9⅞″ long, so they fit the same housings.

Will it work as Stage 1 in an iSpring WGB21B?

Yes, in the first (sediment) housing in place of the iSpring FP15B. Keep a carbon cartridge in Stage 2.

Does it replace a pleated cartridge like the Watts WPC5FF975?

It fits the same housing. The difference is that pleated cartridges can be rinsed and reused, while SED5-10BB is a melt-blown depth cartridge you replace. If you want washable, see SED5-PLT-10BB.

Building a full stack?

Classic whole-house pairing
SED5-10BB (Stage 1) + CTO-10BB carbon block (Stage 2)
Dissolved iron on well water
Add IRON-10BB after this sediment stage
Hard-water scale protection
Add SCALE-10BB to protect heaters & appliances
Fluoride concern
Add the Bone Char 10BB cartridge after sediment

Please note: Filter life and reduction performance depend on your water chemistry, pressure, and usage, so results vary from home to home. This product is not certified to treat water of unknown quality and is not a substitute for testing your water. Descriptions use general, qualified language and are not health claims. When in doubt, test your water or ask us and we’ll help you build the right stack.

† Big Blue® and Pentek® are registered trademarks of Pentair. My Water Club is not affiliated with, sponsored by or endorsed by Pentair. These names are used only to describe size and compatibility.

* 3M and Aqua-Pure, American Plumber, Aqua Flo (WaterGroup), AXEON, Culligan, Express Water, Filters Fast, GE, Hydronix, iSpring, KleenWater, Tier1, USWF, VIQUA, Waterdrop, Watts and Whirlpool, and their model names, are trademarks of their respective owners. My Water Club is not affiliated with, sponsored by or endorsed by these companies, and this cartridge is not made by them. Brand and model names are used only to identify housings this cartridge fits and the same-size cartridges it can replace. Compatibility is based on the standard 10″ × 4.5″ size; please check your housing before ordering.

Additional information

Weight 1 lbs
Dimensions 10 × 5 × 5 in
