SKU: SED5-PLT-10BB Category: Tag Brand:

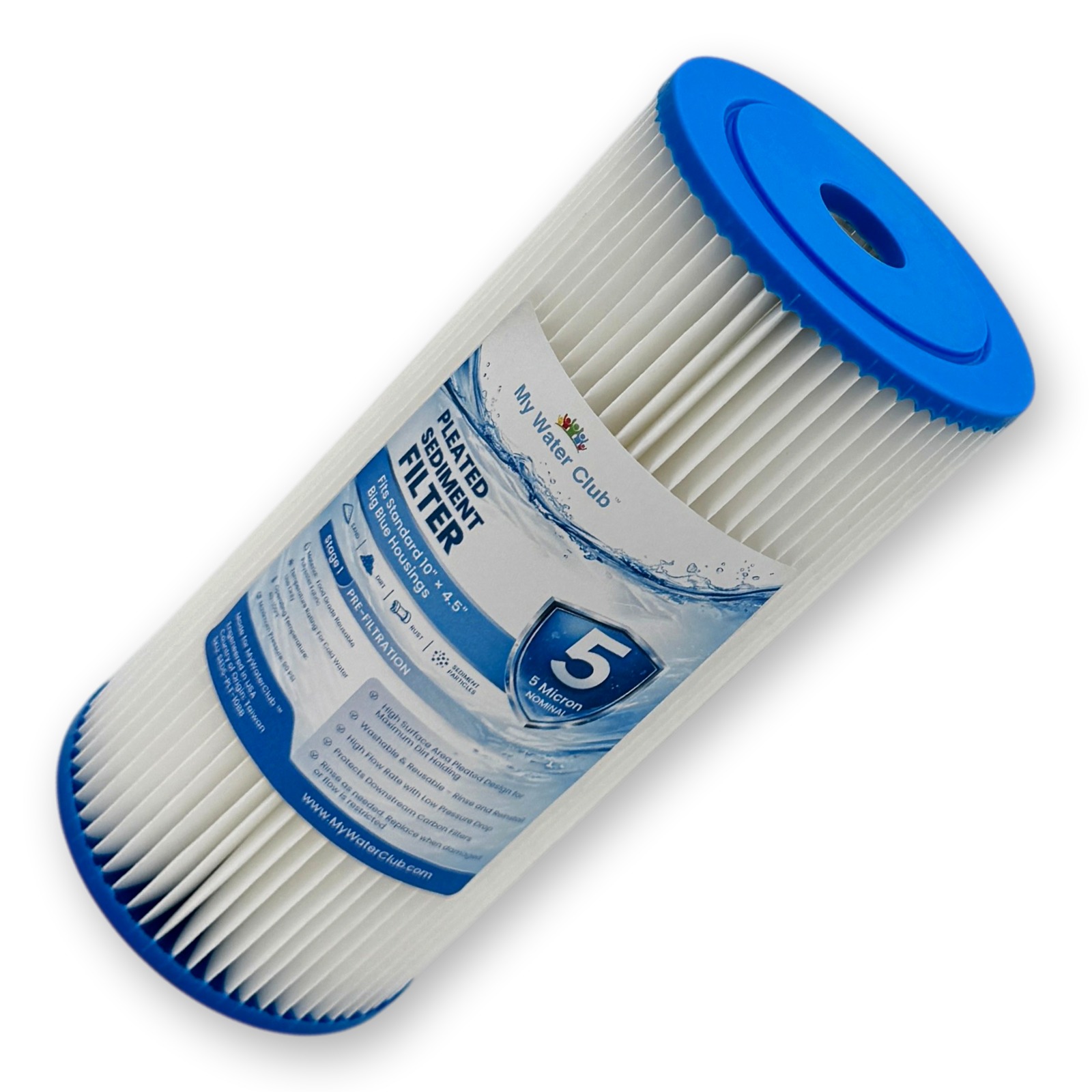

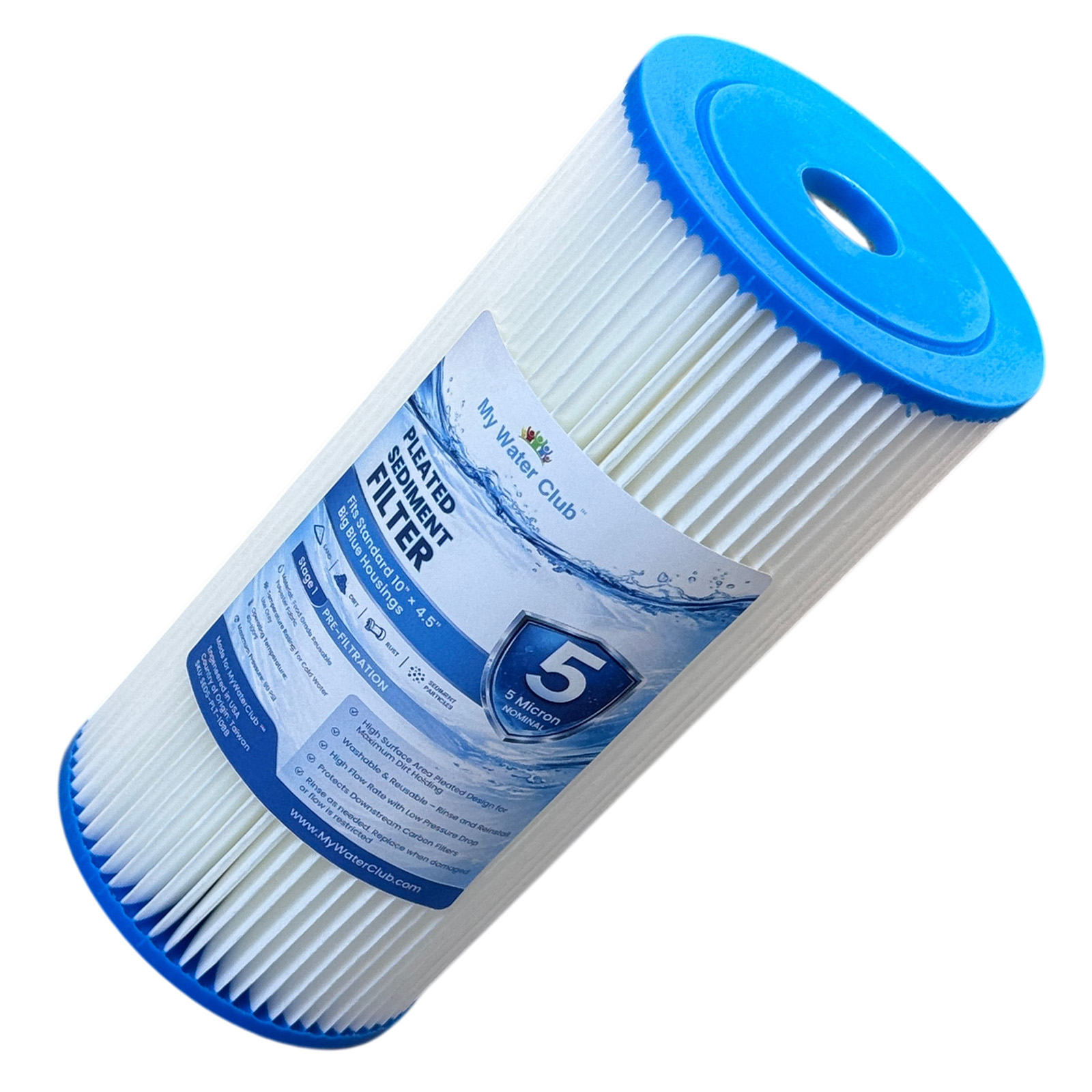

Washable Pleated Sediment Filter Cartridge, Heavy Duty BB 10″ × 4.5″, 5 Micron — Reusable, Captures Dirt, Silt, Sand & Rust

$14.95

Washable, reusable pleated sediment filter for heavy-duty 10″ × 4.5″ (BB) housings.
• 5 micron nominal, food-grade pleated polyester
• Captures dirt, silt, sand & rust particles
• Rinse clean with a hose and reinstall instead of replacing
• A good fit for sediment-heavy well water — Stage 1 pre-filter
• Fits all My Water Club 10″ × 4.5″ systems and HOUSING10BB

<1
$14.95
1
$14.95 each
2 - 4
$12.95 each
5 - 9
$11.95 each
10 - 19
$10.95 each
20+
$8.95 each

Description

A washable, reusable pleated sediment filter in heavy-duty 10″ × 4.5″ (BB) size: pleated polyester rated 5 micron that captures dirt, silt, sand, and rust — rinse it clean and reinstall instead of replacing it.

Stage
Stage 1 · Pre-filter
Size
10″ × 4.5″ BB
Micron
5 µm nominal
Life
Washable — rinse & reuse
Fits
Standard 10″ × 4.5″ BB housings

What this washable pleated sediment filter does

The SED5-PLT-10BB is a pleated sediment pre-filter for standard heavy-duty 10″ × 4.5″ housings. Its polyester fabric is folded into pleats, giving it much more filtering surface than a smooth-walled cartridge of the same size, so it can hold a lot of dirt, silt, sand, and rust particles before it needs attention.

The main difference from a disposable cartridge: it’s washable and reusable. When flow starts to drop, pull the cartridge, rinse the pleats clean with a hose, and reinstall. On sediment-heavy water, where a disposable cartridge might clog in weeks, one pleated cartridge can go through a number of rinse cycles. Replace it when the fabric is torn or flow stays low after rinsing.

Like every sediment stage, it runs first in line, catching grit before it reaches the carbon and specialty stages after it. It fits the same housings as other 10″ × 4.5″ pleated cartridges — see the compatibility list below.

Key benefits

  • ✓ Washable & reusable — rinse and reinstall
  • ✓ Pleated design gives more filtering surface than a smooth cartridge
  • ✓ Captures dirt, silt, sand & rust particles at 5 µm nominal
  • ✓ A good fit for sediment-heavy well water
  • ✓ Replaces same-size pleated cartridges from Hydronix, US Water Systems, Watts & more*
  • ✓ Fits all My Water Club 10″ × 4.5″ systems & HOUSING10BB

Specifications

Cartridge type Pleated sediment — washable/reusable
Nominal size 10″ × 4.5″ (4.5 × 10), standard BB size
Fits Standard 10″ × 4.5″ (BB) housings — same size as Pentair Pentek Big Blue® #10 cartridges†
Compatible with* Hydronix SPC-45-1005 · US Water Systems USWPF-4510-05 · Watts WPC5FF975 + 11 more brands — full list ↓
Micron rating (nominal) 5 micron
Media Food-grade pleated polyester fabric
Recommended position Stage 1 (pre-filter)
Operating temperature 40 °F – 100 °F (cold water use)
Max pressure 90 PSI
Service life Rinse & reuse as needed; replace when torn or flow stays low after rinsing
Brand MyWaterClub (made for MyWaterClub)
SKU SED5-PLT-10BB

Helps reduce

What this cartridge targets — and what it isn’t built for.

Dirt & silt
Sand
Rust particles
Sediment particles
Chlorine / taste
Dissolved iron / H₂S
Hardness / scale
Bacteria & cysts

Which 10″ × 4.5″ cartridge do I need?

The MyWaterClub heavy-duty 10″ × 4.5″ range by stage. Your current filter is highlighted — tap any other name to view it.

Cartridge Type Best for
Stage 1 — Sediment
SED5-10BB Melt-blown sediment · 5 µm Whole-house pre-filtration · municipal or moderate sediment
SED5-PLT-10BB (this filter) Washable pleated polyester · 5 µm Well water or heavy sediment · rinse and reuse
Carbon stages — high flow (GAC)
GAC-10BB Granular activated carbon · 25 µm High-flow chlorine, taste & VOC reduction — lowest cost
CGAC-10BB Coconut shell GAC · 25 µm Coconut carbon for taste & VOCs at full GAC flow
Carbon stages — fine polishing (block)
CTO-10BB Carbon block (CTO) · 10 µm Everyday chlorine, taste & odor polishing — lowest cost
CACB-10BB Coconut carbon block · 10 µm The usual pick for taste & odor · 6–12 month life
Specialty media
CAT-10BB Catalytic activated carbon · 25 µm Chloramine-treated city water · chlorine & H₂S
CATKDF85-10BB Catalytic carbon + KDF-85 · 25 µm Chloramine, H₂S & some heavy metals
BC-10BB Bone char · 25 µm Helps reduce fluoride (plus taste & odor)
IRON-10BB Iron-removal + softening resin Clear-water (dissolved) iron · light softening
SCALE-10BB Polyphosphate scale inhibitor Scale protection for heaters & appliances (does not remove hardness)

Browse all 10″ × 4.5″ BB cartridges & sets → · Specialty media →

Good to know before you buy

Pleated vs. melt-blown — pick by your sediment load. Pleated fabric catches particles on its surface, which is why it rinses clean and suits heavy, visible sediment (well water, older pipes). Melt-blown (SED5-10BB) traps particles through its depth — a better fit for city water with lighter, finer sediment, at the lowest cost per cartridge.

How to rinse. Shut off the water, relieve housing pressure, remove the cartridge, and rinse the pleats outside-in with a hose until the runoff is clear. A soft brush helps on stubborn buildup. Reinstall — no tools needed beyond the housing wrench.

When to replace it. Reusable isn’t forever: each rinse leaves a little fine silt in the fabric. Replace it when the fabric is torn or deformed, or when flow stays low even after a thorough rinse.

Compatible housings & replacement cartridges

SED5-PLT-10BB is a standard 10″ × 4.5″ washable pleated sediment cartridge, rated 5 micron. It fits the housings below and can replace the same-size pleated cartridges listed after them.*

Housings & systems it fits

Brand Housing / system model
My Water Club WHS-2SC-10BB-E, WHS-3SGC-10BB-E, WHS-3SGCACB-10BB-A · HOUSING10BB housing — Stage 1
Pentek† Big Blue® #10 (10″ × 4.5″) housings†
Culligan HD-950A, HD-950 and WH-HD200-C heavy-duty housings
GE GXWH40L and GXWH35F whole home systems
3M Aqua-Pure AP801 whole house housing
American Plumber W10-PR, W15-PR and W10-BC housings
iSpring WGB21B, WGB21BM and WGB31B systems — Stage 1 sediment
Express Water 4.5″ × 10″ whole house systems — sediment stage

Replacement for Hydronix SPC-45-1005, US Water USWPF-4510-05 & other 5-micron pleated cartridges

Brand Pleated cartridge it can replace Their cartridge
Hydronix SPC-45-1005 Washable polyester pleated · 5 µm
US Water Systems USWPF-4510-05 Polyester pleated · 5 µm
Watts WPC5FF975 Pleated · 5 µm
Filters Fast FF10BBP-5 Polyester pleated · 5 µm
USWF USWF-PP5-1045 Polyester pleated · 5 µm
WECO 5MPLWCT4510 Polyester pleated · 5 µm
Pentek† ECP5-BB (255490-43) Cellulose-polyester pleated · 5 µm

Switching from a coarser pleated or disposable sediment cartridge

These same-size cartridges fit the same housing but have a different micron rating or media — see the fit questions.

Brand Cartridge Their cartridge
APEC FI-SED10-BB Washable pleated polyester · 30 µm
iSpring FP15B Polypropylene (non-pleated) · 5 µm

Also searched as: SPC451005 · USWPF451005 · WPC5FF975 · FF10BBP5 · washable sediment filter 10×4.5 · pleated filter 4.5 x 10 5 micron · reusable big blue sediment filter 10 inch

Check before you order. Your old cartridge should be about 4.5″ across and 9¾–10″ long, with an open center hole at both ends. Not sure? Send us a photo of the cartridge label and we’ll confirm the fit.

Orange or rusty water? This stage catches rust particles; clear water that stains orange later has dissolved iron — add IRON-10BB after it.

Fit questions

Can I use SED5-PLT-10BB in place of the Pentek ECP5-BB?

Yes. Both are 10″ × 4.5″ pleated cartridges rated 5 micron, so it fits the same housing. The ECP5-BB uses a cellulose-polyester blend; SED5-PLT-10BB is polyester, made to be rinsed and reused.

Will it replace the Hydronix SPC-45-1005 or US Water USWPF-4510-05?

Yes. They are also 10″ × 4.5″ washable polyester pleated cartridges rated 5 micron. Rinse and replace on the same routine you use now.

I have an iSpring WGB21B or WGB31B. Can I use it in Stage 1?

Yes. It fits where the FP15B goes. The FP15B is a disposable polypropylene cartridge; SED5-PLT-10BB is pleated and washable, which suits well water and other sediment-heavy supplies.

How often should I rinse it?

When water pressure drops noticeably or the pleats look brown. On sediment-heavy well water that can be every few weeks; on city water, much less often. Replace it when the fabric tears or flow stays low after a thorough rinse.

I use a 30-micron pleated cartridge. Can I switch to 5 micron?

It fits the same housing. 5 micron catches finer particles, so it also loads up faster on very dirty water. If yours clogs quickly, keep a coarser cartridge in a housing ahead of it.

Building a full stack?

Well water, 2 stages
SED5-PLT-10BB (Stage 1) + GAC-10BB or CTO-10BB carbon
Light sediment, lowest cost
SED5-10BB melt-blown — depth filtration, disposable
Well water with dissolved iron
Add IRON-10BB after this sediment stage
Rotten-egg odor on well water
Add CAT-10BB or CATKDF85-10BB after this sediment stage

Please note: Filter life and reduction performance depend on your water chemistry, pressure, and usage, so results vary from home to home. This product is not certified to treat water of unknown quality and is not a substitute for testing your water. Descriptions use general, qualified language and are not health claims. When in doubt, test your water or ask us and we’ll help you build the right stack.

† Big Blue® and Pentek® are registered trademarks of Pentair. My Water Club is not affiliated with, sponsored by or endorsed by Pentair. These names are used only to describe size and compatibility.

* American Plumber, APEC, Culligan, Express Water, Filters Fast, GE, Hydronix, iSpring, 3M and Aqua-Pure, US Water Systems, USWF, Watts and WECO, and their model names, are trademarks of their respective owners. My Water Club is not affiliated with, sponsored by or endorsed by these companies, and this cartridge is not made by them. Brand and model names are used only to identify housings this cartridge fits and the same-size cartridges it can replace. Compatibility is based on the standard 10″ × 4.5″ size; please check your housing before ordering.
